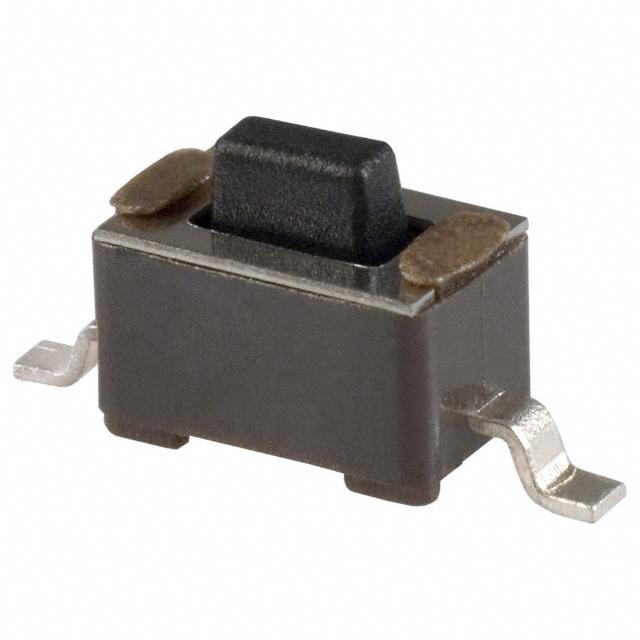

TL3302BF180QG/TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3302BF180QG/TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL3302BF180QG/TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL3302BF180QG/TR |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1800 pcs | 5400 pcs | |||
|---|---|---|---|---|---|
| $0.127 | $0.118 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL3302BF180QG/TR | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 170196 pcs | Data sheet | TL3302 Series DatasheetTL3302BF180QG Drawing |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | TL3302 | Packaging | Tape & Reel (TR) |
| Outline | 6.00mm x 3.50mm | Other Names | EG2529TR P010523 TL3302BF180QG |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 180gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 40,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Tactile Feedback | Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Rectangular Button | Actuator Orientation | Top Actuated |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 5.00mm |
