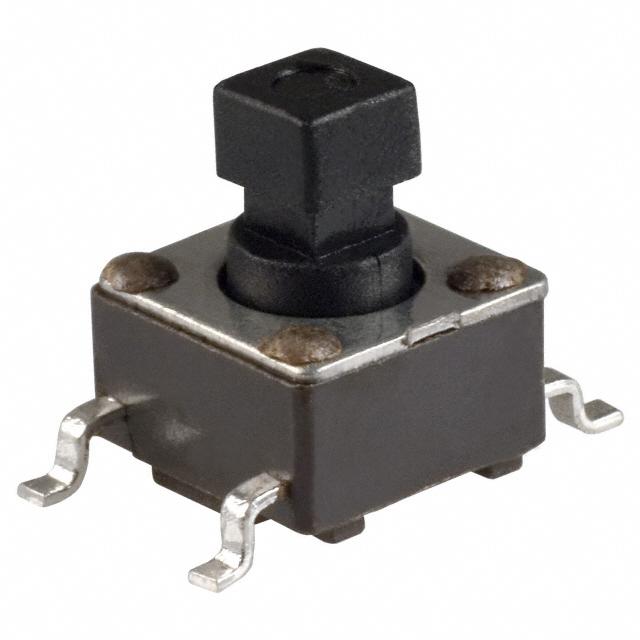

TL3301SPF160QG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3301SPF160QG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL3301SPF160QG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL3301SPF160QG |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.154 | $0.15 | $0.144 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.139 | $0.134 | $0.123 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL3301SPF160QG | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152545 pcs | Data sheet | TL3301 Series Datasheet |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | TL3301 | Packaging | Cut Tape (CT) |
| Outline | 6.00mm x 6.00mm | Other Names | D310785 EG1869 EG1869-ND EG1869CT |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated | Actuator Material | Polyamide (PA), Nylon |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 7.50mm |
