Home > Products > Switches > Tactile Switches > TL3301BF260QG

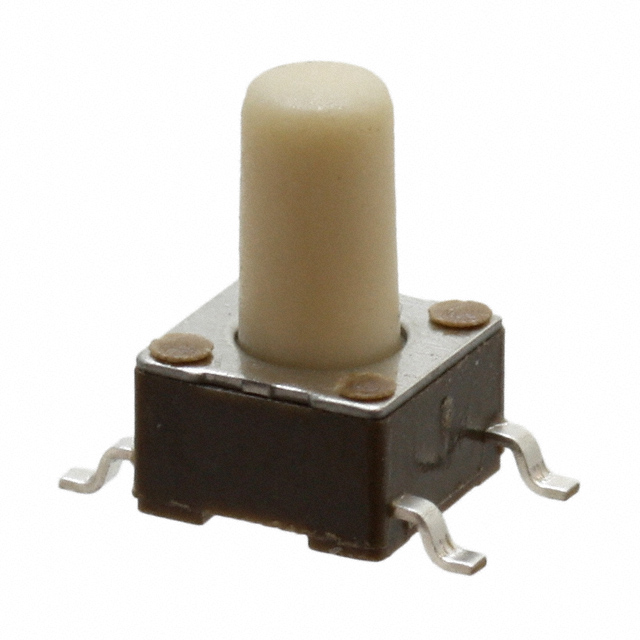

TL3301BF260QG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3301BF260QG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TL3301BF260QG
Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 236772 pcs
Reference Price (In US Dollars)	4050 pcs
Reference Price (In US Dollars)	$0.083

Product parameter
Data sheet

Product parameter

Part Number	TL3301BF260QG	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	236772 pcs	Data sheet	TL3301 Series Datasheet TL3301BF260QG Drawing
Category	Switches	Termination Style	Gull Wing
Switch Travel	0.25mm	Switch Function	Off-Mom
Series	TL3301	Packaging	Tube
Outline	6.00mm x 6.00mm	Operating Temperature	-20°C ~ 70°C
Operating Force	260gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount	Contact Rating @ Voltage	0.05A @ 12VDC
Circuit	SPST-NO	Actuator Type	Standard
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA), Nylon
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	9.50mm
