TL2243

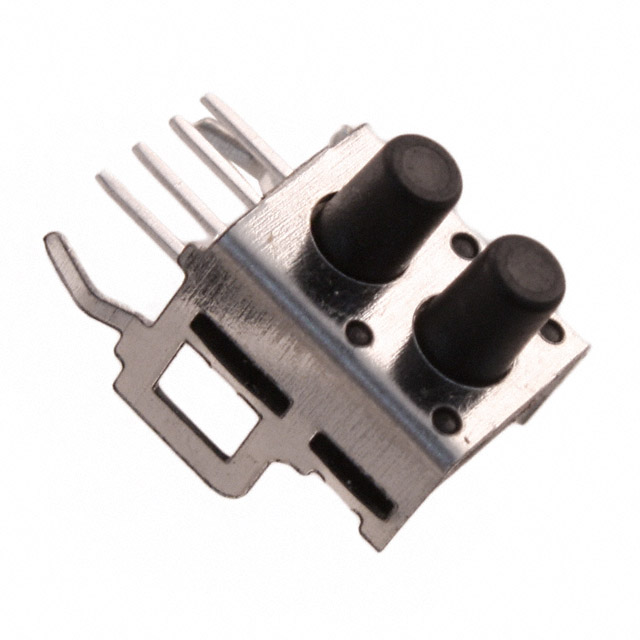

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL2243 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL2243 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL2243 |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPSTX2 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.25 | $0.242 | $0.237 | $0.228 | $0.197 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.179 | $0.17 | $0.134 | $0.125 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL2243 | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPSTX2 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 165253 pcs | Data sheet | TL2243 Series Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | TL2243 | Packaging | Bulk |
| Outline | 9.66mm x 7.30mm | Other Names | EG4606 |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 180gf |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Tactile Feedback |
| Detailed Description | Tactile Switch SPST x 2 Side Actuated Through Hole, Right Angle | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST x 2 | Actuator Type | Dual |
| Actuator Orientation | Side Actuated | Actuator Material | - |
| Actuator Length, Right Angle | 6.80mm | Actuator Height off PCB, Vertical | - |
