Home > Products > Switches > Tactile Switches > TL1107AF180WQ

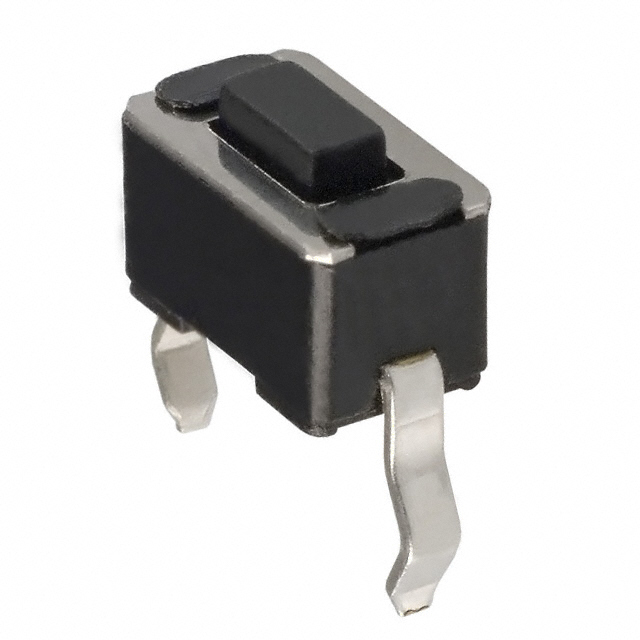

TL1107AF180WQ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL1107AF180WQ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TL1107AF180WQ
Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 297092 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.133	$0.128	$0.124	$0.119	$0.115
	$0.105	$0.092	$0.078	$0.065

Product parameter
Data sheet

Product parameter

Part Number	TL1107AF180WQ	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	297092 pcs	Data sheet	TL1107AF180WQ Drawing TL1107 Series Datasheet
Category	Switches	Termination Style	PC Pin
Switch Travel	0.25mm	Switch Function	Off-Mom
Series	TL1107	Packaging	Bulk
Outline	6.00mm x 3.50mm	Other Names	EG2511 P010310 TL1107AF180W
Operating Temperature	-20°C ~ 70°C	Operating Force	180gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Tactile Feedback
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 12VDC
Circuit	SPST-NO	Actuator Type	Rectangular Button
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	4.30mm
