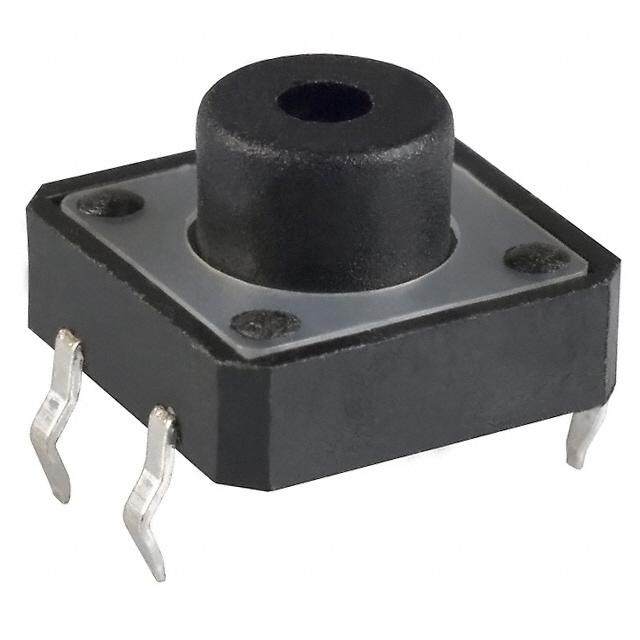

TL1100EF160Q
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL1100EF160Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL1100EF160Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL1100EF160Q |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.186 | $0.18 | $0.177 | $0.17 | $0.147 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.134 | $0.127 | $0.10 | $0.093 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL1100EF160Q | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 233426 pcs | Data sheet | TL1100EF160Q DrawingTL1100 Series Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.30mm | Switch Function | Off-Mom |
| Series | TL1100 | Packaging | Bulk |
| Outline | 12.00mm x 12.00mm | Other Names | D301102 EG1826 P001102 TL 1100 E F160 Q TL1104B |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Tactile Feedback | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | Polyester | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 7.50mm |
