TL1015AF160QG

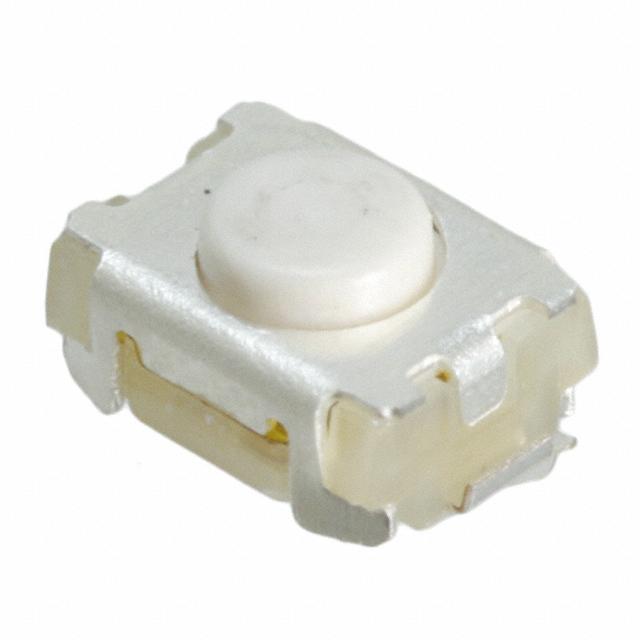

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL1015AF160QG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL1015AF160QG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL1015AF160QG |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.326 | $0.314 | $0.297 | $0.261 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.237 | $0.225 | $0.22 | $0.172 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL1015AF160QG | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140525 pcs | Data sheet | TL1015 Series DatasheetTL1015AF160QG Drawing |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.20mm | Switch Function | Off-Mom |
| Series | TL1015 | Packaging | Original-Reel® |
| Outline | 3.90mm x 2.90mm | Other Names | EG4344DKR |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 200,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | Polyamide (PA46), Nylon 4/6 | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 2.00mm |
