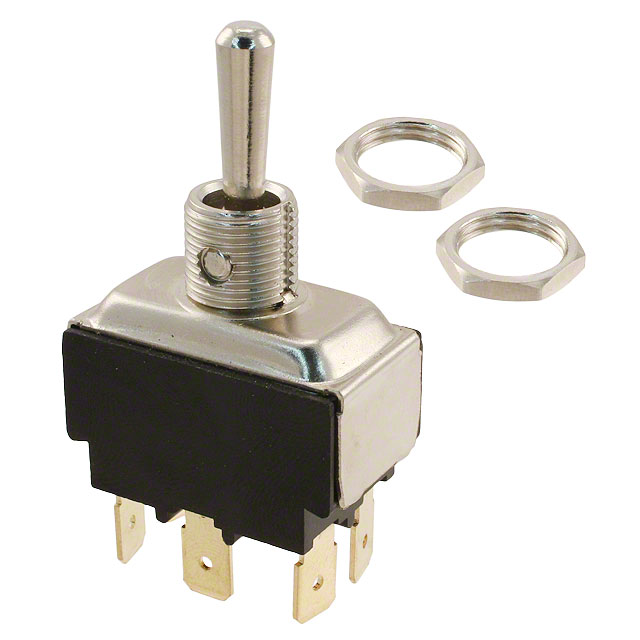

ST246D00
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST246D00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST246D00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST246D00 |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPDT 20A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.44 | $2.319 | $2.258 | $2.197 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.136 | $2.013 | $1.708 | $1.617 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST246D00 | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 20A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20177 pcs | Data sheet | ST246D00 DrawingST2 Series Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Switch Function | On-Off-On |
| Series | ST2, LAMB | Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Packaging | Bulk | Other Names | EG4821 |
| Operating Temperature | -20°C ~ 85°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Electrical Life | 6,000 Cycles | Detailed Description | Toggle Switch DPDT Panel Mount |
| Current Rating | 20A (AC) | Circuit | DPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Standard Round |
| Actuator Material | Brass, Nickel Plated | Actuator Length | 17.50mm |
