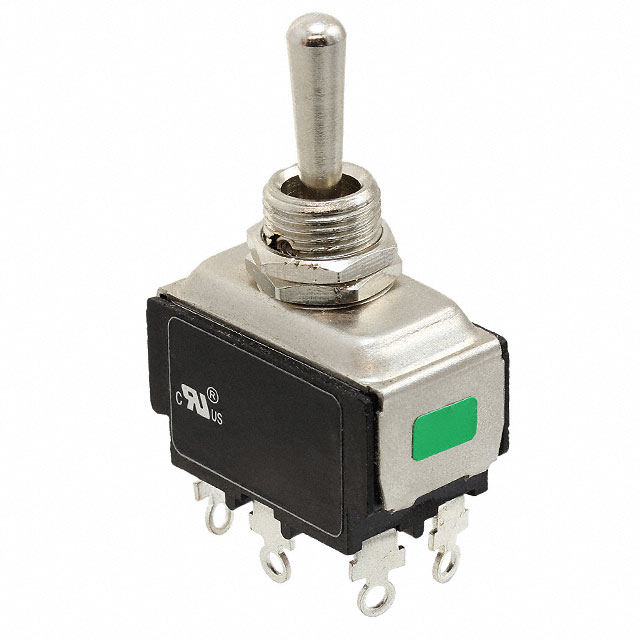

ST226D00
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST226D00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST226D00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST226D00 |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPDT 20A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.47 | $2.345 | $2.284 | $2.222 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.16 | $2.037 | $1.728 | $1.636 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST226D00 | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 20A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22999 pcs | Data sheet | ST2 Series Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-Off-On |
| Series | ST2, LAMB | Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Packaging | Bulk | Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Electrical Life | 6,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 20A (AC) |
| Circuit | DPDT | Bushing Thread | M12 x 1 |
| Actuator Type | Standard Round | Actuator Material | Brass, Nickel Plated |
| Actuator Length | 17.50mm |
