Home > Products > Switches > Snap Action, Limit Switches > SS0750301F040P1A

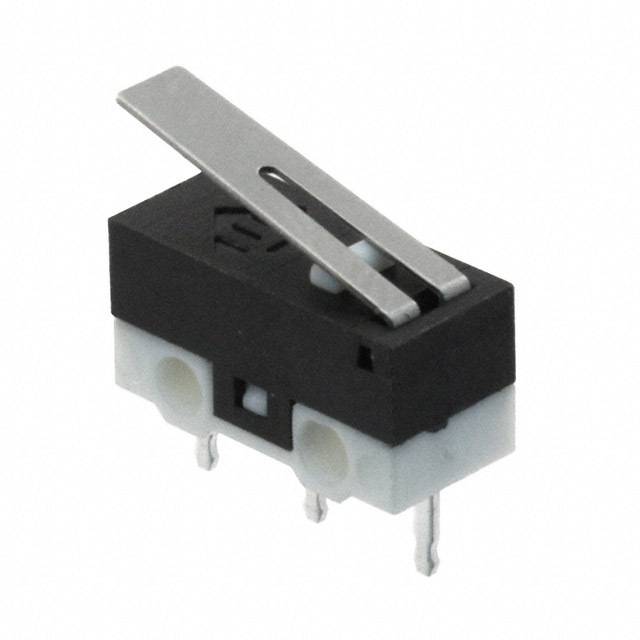

SS0750301F040P1A

SS0750301F040P1A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SS0750301F040P1A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SS0750301F040P1A
Manufacturer	E-Switch
Description	SWITCH SNAP ACTION SPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 98188 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.443	$0.419	$0.402	$0.385	$0.368
	$0.293	$0.268	$0.26	$0.234

Product parameter
Data sheet

Product parameter

Part Number	SS0750301F040P1A	Manufacturer	E-Switch
Description	SWITCH SNAP ACTION SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98188 pcs	Data sheet	SS0750301F040P1A Drawing SS Switch Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Mom
Series	SS	Release Force	15gf
Pretravel	0.063" (1.6mm)	Packaging	Bulk
Overtravel	-	Other Names	EG4924
Operating Temperature	-25°C ~ 75°C	Operating Position	0.345" (8.8mm)
Operating Force	40gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	100,000 Cycles	Differential Travel	-
Current Rating	3A (AC)	Circuit	SPDT
Actuator Type	Lever, Straight
