Home > Products > Switches > Rocker Switches > RSC141D1A00

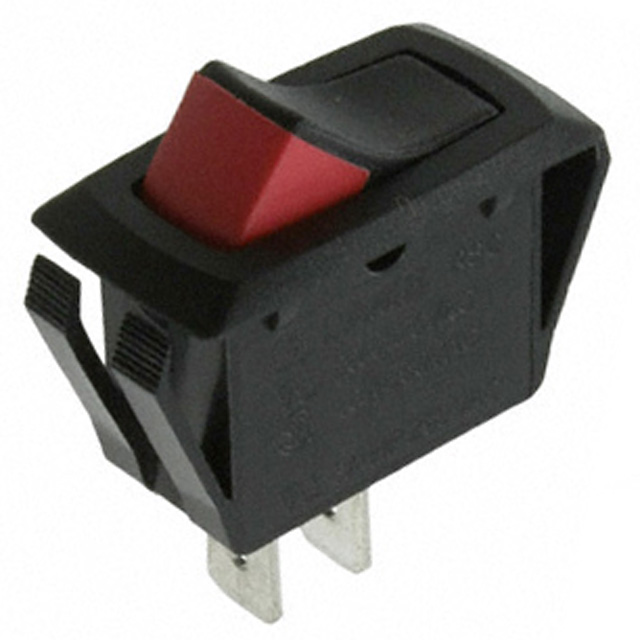

RSC141D1A00

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RSC141D1A00 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RSC141D1A00
Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 76388 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.276

Product parameter
Data sheet

Product parameter

Part Number	RSC141D1A00	Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76388 pcs	Data sheet	RSC141D1A00 Drawing RSC Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	RSC, LAMB	Panel Cutout Dimensions	Rectangular - 28.60mm x 13.90mm
Packaging	Bulk	Other Names	EG4756
Operating Temperature	-20°C ~ 105°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Two-Tone Rocker
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch SPST 20A (AC) 125V Panel Mount, Snap-In
Current Rating	20A (AC)	Color - Actuator/Cap	Black, Red
Circuit	SPST	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
