Home > Products > Switches > Rocker Switches > RRG3813QQ00

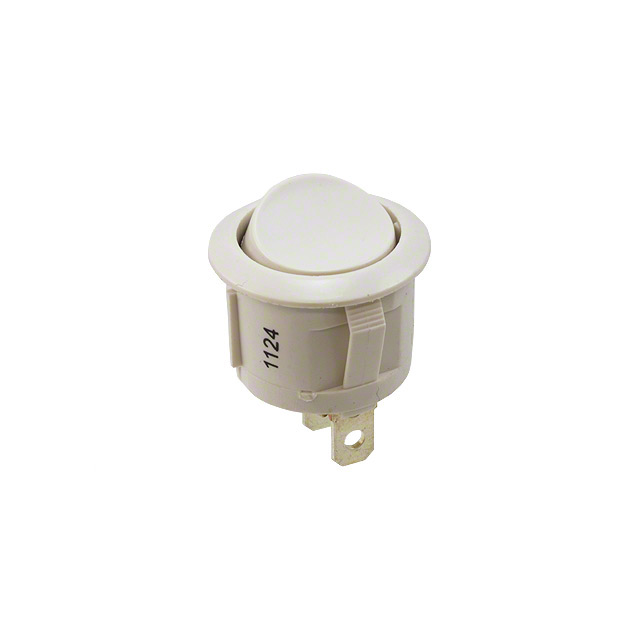

RRG3813QQ00

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RRG3813QQ00 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RRG3813QQ00
Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 135201 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.266	$0.244	$0.234	$0.223	$0.212
	$0.207	$0.202	$0.17	$0.164

Product parameter
Data sheet

Product parameter

Part Number	RRG3813QQ00	Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	135201 pcs	Data sheet	RRG3 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder, Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	RRG3, LAMB	Panel Cutout Dimensions	Circular - 20.00mm Dia
Packaging	Bulk	Operating Temperature	-20°C ~ 105°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch SPST 10A (AC) 125V Panel Mount, Snap-In	Current Rating	10A (AC)
Color - Actuator/Cap	Bisque	Circuit	SPST
Actuator Type	Round	Actuator Marking	No Marking
