Home > Products > Switches > Rocker Switches > RR812C1100

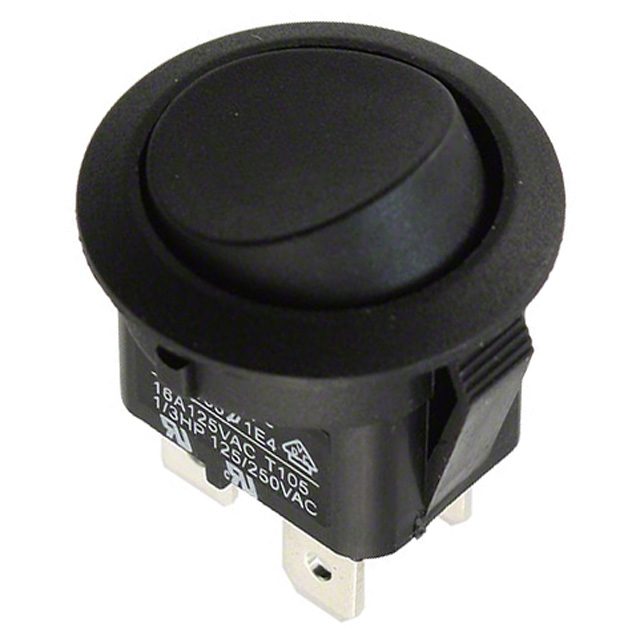

RR812C1100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RR812C1100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RR812C1100
Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 76311 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.314

Product parameter
Data sheet

Product parameter

Part Number	RR812C1100	Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76311 pcs	Data sheet	RR812C1100 Drawing RR8 Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	RR8, LAMB	Panel Cutout Dimensions	Circular - 20.00mm Dia
Packaging	Bulk	Other Names	EG4778
Operating Temperature	-20°C ~ 105°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPST 16A (AC) 125V Panel Mount, Snap-In
Current Rating	16A (AC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Round
Actuator Marking	No Marking
