Home > Products > Switches > Rocker Switches > RR3402D

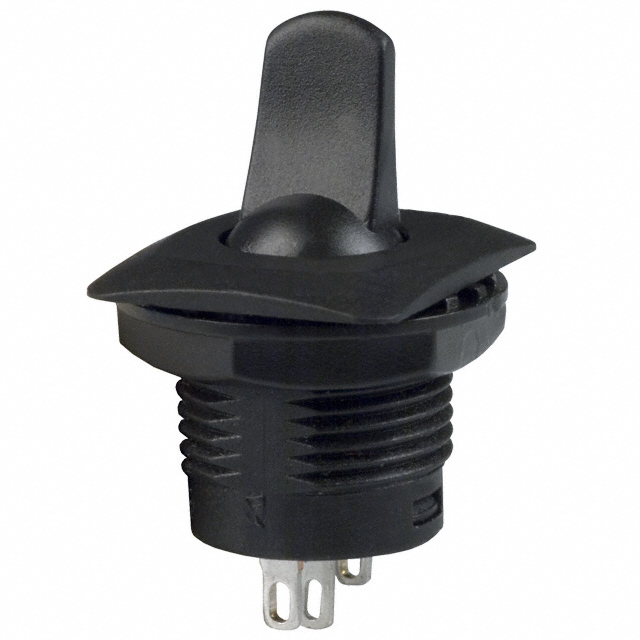

RR3402D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RR3402D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RR3402D
Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 50898 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.723

Product parameter
Data sheet

Product parameter

Part Number	RR3402D	Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50898 pcs	Data sheet	RR3402D Drawing RR3402 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	RR3402	Panel Cutout Dimensions	Circular - 15.00mm Dia
Packaging	Bulk	Other Names	EG1894 F030005 PS4202D
Operating Temperature	0°C ~ 65°C	Mounting Type	Panel Mount, Threaded Body with Nut
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch SPDT 6A (AC) 125V Panel Mount, Threaded Body with Nut
Current Rating	6A (AC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Paddle
Actuator Marking	No Marking
