Home > Products > Switches > Pushbutton Switches > RP3502MBYEL

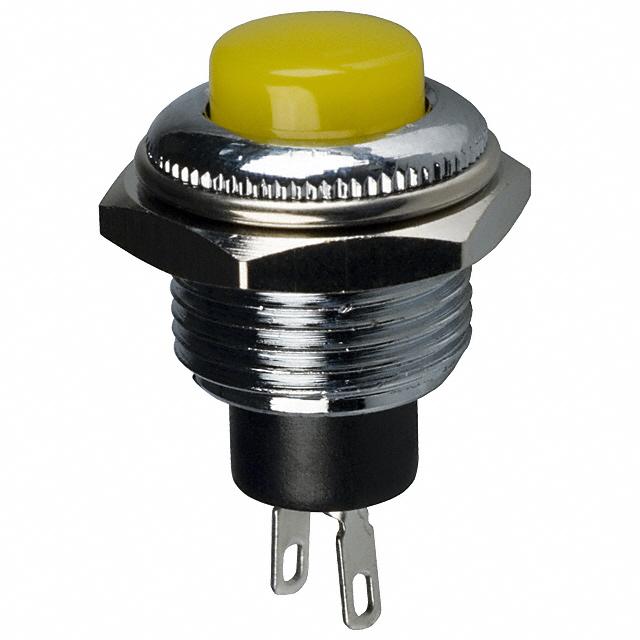

RP3502MBYEL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RP3502MBYEL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RP3502MBYEL
Manufacturer	E-Switch
Description	SWITCH PUSH SPST-NC 3A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 36061 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.927

Product parameter
Data sheet

Product parameter

Part Number	RP3502MBYEL	Manufacturer	E-Switch
Description	SWITCH PUSH SPST-NC 3A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36061 pcs	Data sheet	RP3502 Series Datasheet RP3502MBYEL Drawing
Category	Switches	Voltage Rating - AC	120V
Type	Standard	Termination Style	Solder Lug
Switch Function	On-Mom	Series	RP3502
Panel Cutout Dimensions	Circular - 12.70mm Dia	Packaging	Bulk
Other Names	EG1937 F030021 PS3502MB-YEL RP3502MB-YEL	Operating Temperature	-20°C ~ 65°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	6,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Pushbutton Switch SPST-NC Standard Panel Mount, Front	Current Rating	3A (AC)
Color - Actuator/Cap	Yellow	Circuit	SPST-NC
Actuator Type	Round, Button
