Home > Products > Switches > DIP Switches > RDMAR16P1T

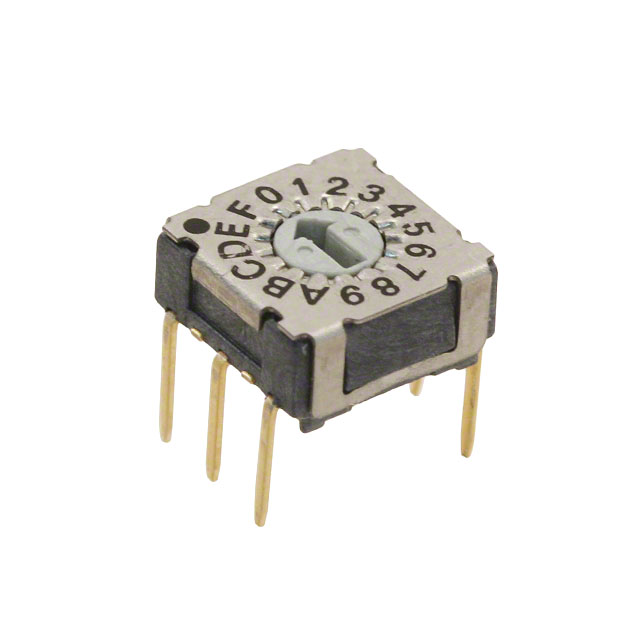

RDMAR16P1T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RDMAR16P1T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RDMAR16P1T
Manufacturer	E-Switch
Description	SWITCH ROTARY DIP HEX 100MA 42V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 41147 pcs
Reference Price (In US Dollars)	1050 pcs
Reference Price (In US Dollars)	$0.828

Product parameter
Data sheet

Product parameter

Part Number	RDMAR16P1T	Manufacturer	E-Switch
Description	SWITCH ROTARY DIP HEX 100MA 42V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41147 pcs	Data sheet	RDMAR16P1T Drawing RDM Series Datasheet
Category	Switches	Washable	Yes
Voltage Rating	42VDC	Termination Style	PC Pin
Series	RDM	Pitch	0.100" (2.54mm), Full
Packaging	Tube	Other Names	EG4977-5 RDMAR16PIT
Operating Temperature	-60°C ~ 125°C	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	25,000 Steps	Manufacturer Standard Lead Time	9 Weeks
Length	0.291" (7.40mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.144" (3.66mm)	Features	IP67 - Dust Tight, Waterproof
Electrical Life	25,000 Steps	Detailed Description	Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 100mA 42VDC
Current Rating	100mA	Contact Material	-
Contact Finish	Gold	Circuit	Hexadecimal
Body Material	-	Actuator Type	Rotary for Tool
Actuator Level	Flush, Recessed
