Home > Products > Switches > Rocker Switches > R711FA1-SXXXNBDNNX

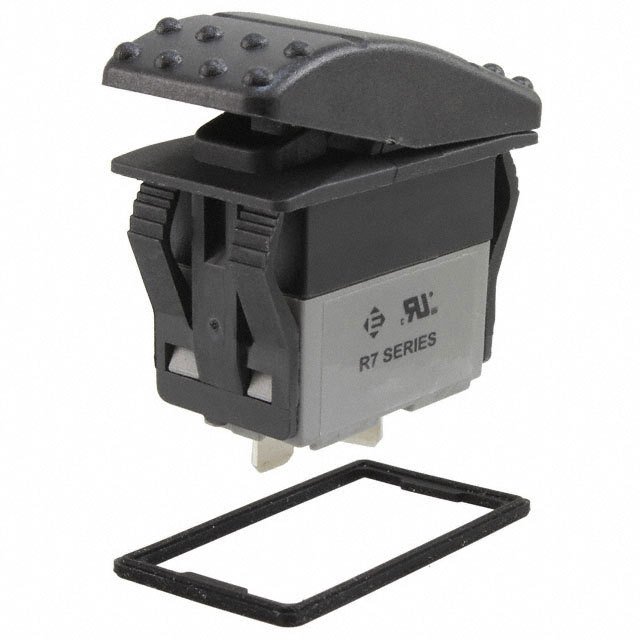

R711FA1-SXXXNBDNNX

R711FA1-SXXXNBDNNX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R711FA1-SXXXNBDNNX with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	R711FA1-SXXXNBDNNX
Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 16A 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 22378 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.159	$2.057	$1.955	$1.852
	$1.826	$1.774	$1.697	$1.492

Product parameter
Data sheet

Product parameter

Part Number	R711FA1-SXXXNBDNNX	Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 16A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22378 pcs	Data sheet	R7 Series Rocker Switch R711FA1-SXXXNBDNNX Drawing
Category	Switches	Voltage Rating - DC	30V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	R7	Panel Cutout Dimensions	Rectangular - 37.00mm x 21.10mm
Packaging	Bulk	Other Names	EG5101
Operating Temperature	0°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch SPST 16A (DC) Panel Mount, Snap-In
Current Rating	16A (DC)	Color - Actuator/Cap	Black
Circuit	SPST	Actuator Type	Convex (Reverse V)
Actuator Marking	No Marking
