Home > Products > Switches > Rocker Switches > R5EBLKBLKEF0

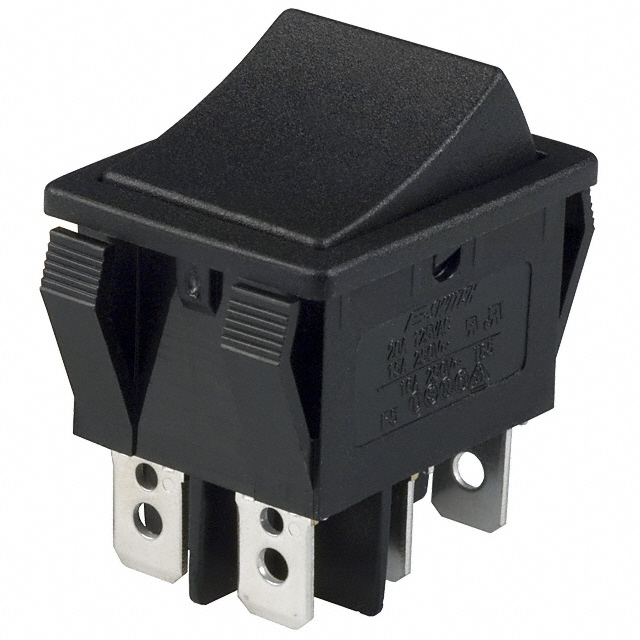

R5EBLKBLKEF0

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R5EBLKBLKEF0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	R5EBLKBLKEF0
Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 58097 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.799	$0.764	$0.729	$0.695	$0.66
	$0.643	$0.608	$0.538	$0.521

Product parameter
Data sheet

Product parameter

Part Number	R5EBLKBLKEF0	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58097 pcs	Data sheet	R5EBLKBLKEF0 Drawing R5 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Mom
Series	R5	Panel Cutout Dimensions	Rectangular - 30.00mm x 22.20mm
Packaging	Bulk	Other Names	EG5608 R5EBLKBLKEF0-ND
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 20A (AC) 125V Panel Mount, Snap-In
Current Rating	20A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
