Home > Products > Switches > Rocker Switches > R5DBLKBLKBF0

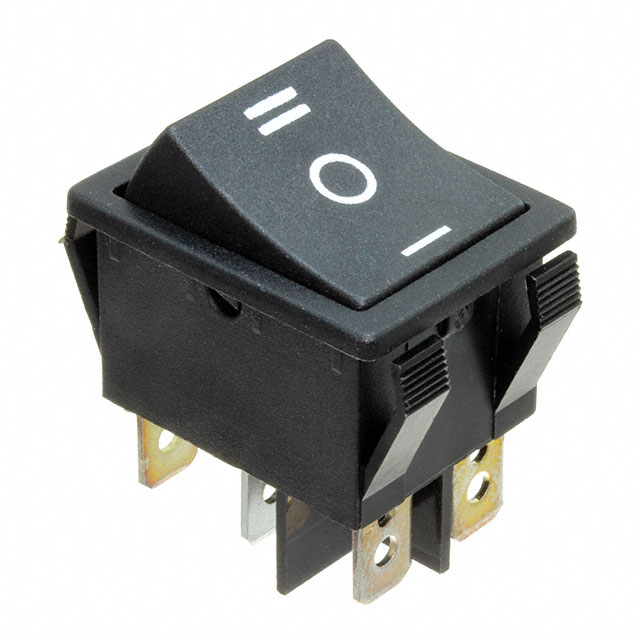

R5DBLKBLKBF0

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R5DBLKBLKBF0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	R5DBLKBLKBF0
Manufacturer	E-Switch
Description	ILLUMINATED ROCKER SWITCH 22MM X
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 46278 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.99	$0.965	$0.919	$0.873	$0.827
	$0.804	$0.781	$0.689	$0.643

Product parameter
Data sheet

Product parameter

Part Number	R5DBLKBLKBF0	Manufacturer	E-Switch
Description	ILLUMINATED ROCKER SWITCH 22MM X	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46278 pcs	Data sheet	R5DBLKBLKBF0 Drawing R5 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off-On
Series	R5	Panel Cutout Dimensions	Rectangular - 30.00mm x 22.20mm
Packaging	Bulk	Other Names	EG5675
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 15A (AC) 125V Panel Mount, Snap-In
Current Rating	15A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	I O II
