Home > Products > Switches > Rocker Switches > R1966DBLKBLKFR

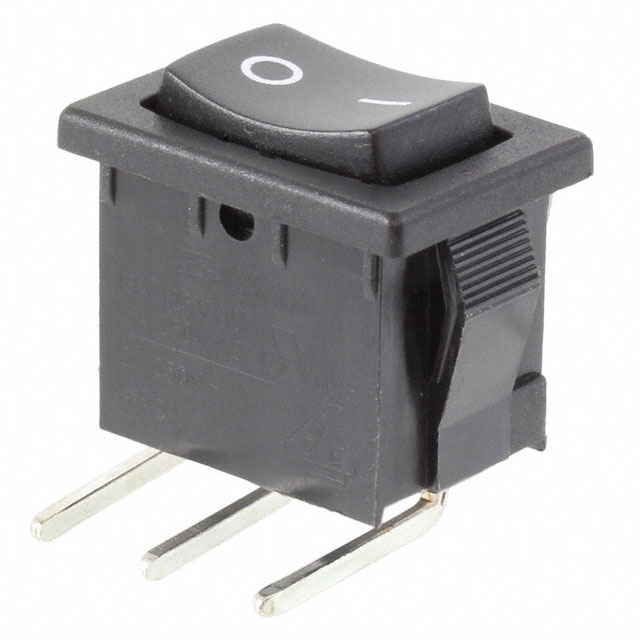

R1966DBLKBLKFR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R1966DBLKBLKFR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	R1966DBLKBLKFR
Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 55369 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$0.698

Product parameter
Data sheet

Product parameter

Part Number	R1966DBLKBLKFR	Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55369 pcs	Data sheet	R1966DBLKBLKFR Drawing R1966 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Off-On
Series	R1966	Panel Cutout Dimensions	Rectangular - 19.40mm x 13.00mm
Packaging	Bulk	Operating Temperature	-30°C ~ 65°C
Mounting Type	Panel Mount, Snap-In, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch SPDT 15A (AC) 125V Panel Mount, Snap-In, Right Angle	Current Rating	15A (AC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Concave (Curved)	Actuator Marking	O -
