Home > Products > Switches > Pushbutton Switches > PV3H2H0NN

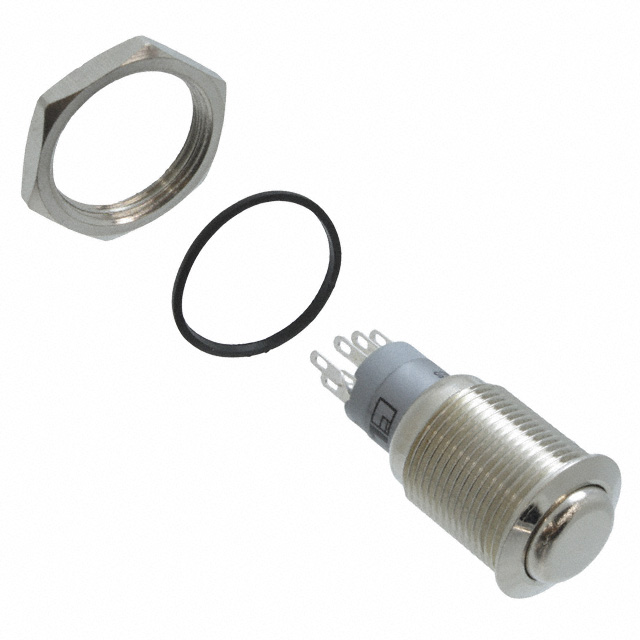

PV3H2H0NN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PV3H2H0NN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PV3H2H0NN
Manufacturer	E-Switch
Description	SWITCH PUSHBUTTON DPDT 2A 48V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11576 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.388	$4.156	$4.099	$3.81
	$3.752	$3.348	$3.233	$3.117

Product parameter
Data sheet

Product parameter

Part Number	PV3H2H0NN	Manufacturer	E-Switch
Description	SWITCH PUSHBUTTON DPDT 2A 48V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11576 pcs	Data sheet	PV3 Series Datasheet PV3F2H0NN Drawing
Category	Switches	Voltage Rating - DC	48V
Type	Vandal Resistant	Termination Style	Solder Lug
Switch Function	On-Mom	Series	PV3, LAMB
Panel Cutout Dimensions	Circular - 16.00mm Dia	Packaging	Bulk
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch DPDT Vandal Resistant Panel Mount, Front
Current Rating	2A (DC)	Color - Actuator/Cap	Silver
Circuit	DPDT	Actuator Type	Round, Button
