Home > Products > Switches > Snap Action, Limit Switches > MS0850505F015S1A

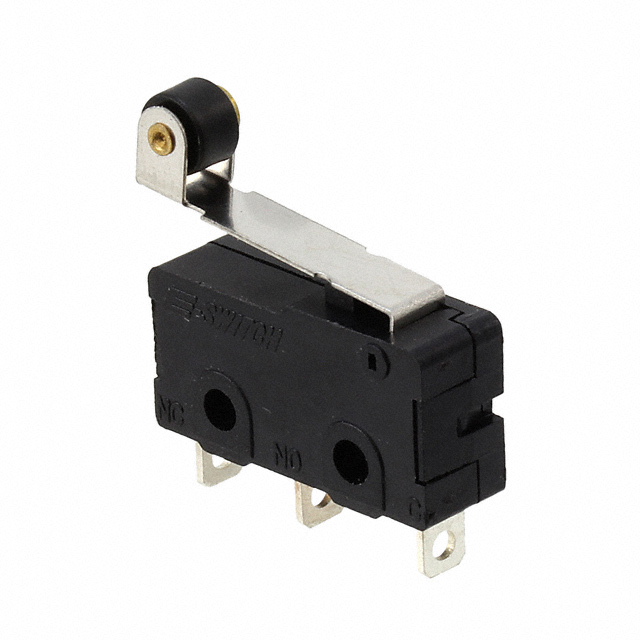

MS0850505F015S1A

MS0850505F015S1A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS0850505F015S1A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS0850505F015S1A
Manufacturer	E-Switch
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 67382 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.529	$0.499	$0.479	$0.459	$0.439
	$0.349	$0.319	$0.309	$0.28

Product parameter
Data sheet

Product parameter

Part Number	MS0850505F015S1A	Manufacturer	E-Switch
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	67382 pcs	Data sheet	MS Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	MS	Release Force	6.000gf
Pretravel	0.157" (4.0mm)	Packaging	Bulk
Overtravel	-	Operating Temperature	-25°C ~ 85°C
Operating Position	0.587" (14.9mm)	Operating Force	15gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	50,000 Cycles
Differential Travel	-	Current Rating	5A (AC)
Circuit	SPDT	Actuator Type	Lever, Roller
