Home > Products > Switches > Snap Action, Limit Switches > MS0850504F020S1A

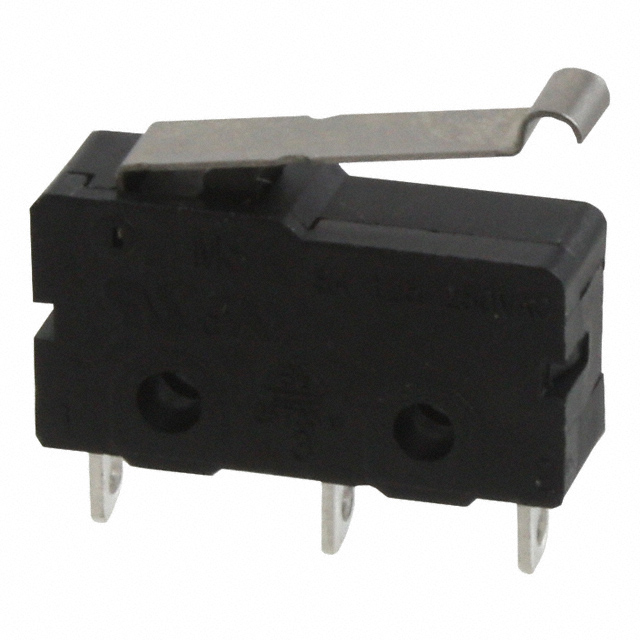

MS0850504F020S1A

MS0850504F020S1A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS0850504F020S1A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS0850504F020S1A
Manufacturer	E-Switch
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 87461 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.513	$0.486	$0.466	$0.447	$0.428
	$0.34	$0.311	$0.301	$0.272

Product parameter
Data sheet

Product parameter

Part Number	MS0850504F020S1A	Manufacturer	E-Switch
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87461 pcs	Data sheet	MS0850504F020S1A Drawing MS Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	MS	Release Force	8.000gf
Pretravel	0.125" (3.2mm)	Packaging	Bulk
Overtravel	-	Other Names	EG4547
Operating Temperature	-25°C ~ 85°C	Operating Position	0.429" (10.9mm)
Operating Force	20gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	50,000 Cycles	Differential Travel	-
Current Rating	5A (AC)	Circuit	SPDT
Actuator Type	Lever, Simulated Roller
