Home > Products > Switches > Pushbutton Switches > LASEEV32HREDRED

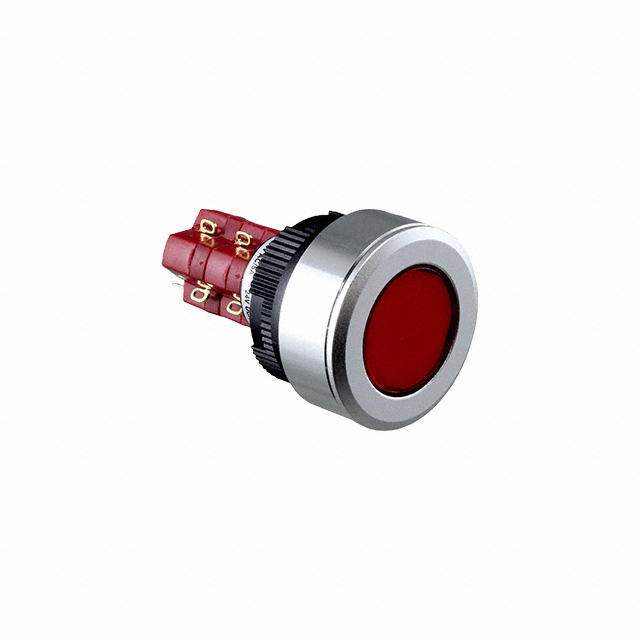

LASEEV32HREDRED

LASEEV32HREDRED

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LASEEV32HREDRED with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LASEEV32HREDRED
Manufacturer	E-Switch
Description	SWITCH PUSHBUTTON DPDT 8A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3905 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$10.171	$10.025	$9.88
	$9.154	$9.008	$7.991

Product parameter
Data sheet

Product parameter

Part Number	LASEEV32HREDRED	Manufacturer	E-Switch
Description	SWITCH PUSHBUTTON DPDT 8A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3905 pcs	Data sheet	LA Series Datasheet LASEEV32HREDRED Drawing
Category	Switches	Voltage Rating - DC	24V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-On
Series	LA	Panel Cutout Dimensions	Circular - 25.50mm Dia
Packaging	Bulk	Other Names	EG5528 LASEEV32HREDRED-ND
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	6 VDC
Illumination Type, Color	LED, Red	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Current Rating	8A (AC), 6A (DC)	Color - Actuator/Cap	Red
Circuit	DPDT	Actuator Type	Round, Button, Flush
