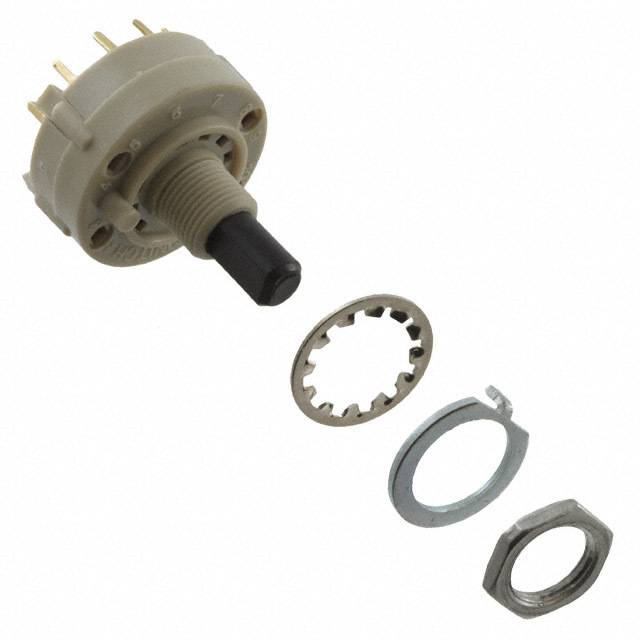

KC15A9.501NPF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KC15A9.501NPF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy KC15A9.501NPF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | KC15A9.501NPF |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH ROTARY 5POS 350MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.753 | $2.273 | $2.243 | $2.063 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.974 | $1.764 | $1.734 | $1.705 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | KC15A9.501NPF | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH ROTARY 5POS 350MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23159 pcs | Data sheet | KC15A9.501NPF DrawingKC Series Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | PC Pin | Series | KC |
| Panel Cutout Dimensions | Circular - 9.80mm Dia | Operating Force | 8.770gfm |
| Number of Positions | 5 | Number of Poles per Deck | 1 |
| Number of Decks | 1 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 5 Position SP5T 350mA (AC) 125VAC Panel Mount, Through Hole |
| Depth Behind Panel | 14.20mm | Current Rating | 350mA (AC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit per Deck | SP5T |
| Angle of Throw | 30° | Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 9.50mm |
