Home > Products > Switches > Slide Switches > EGL2290W

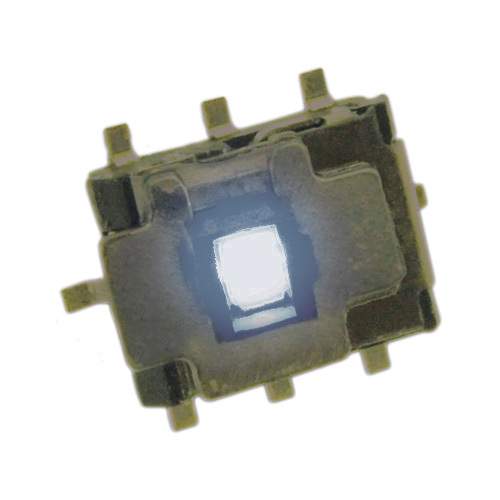

EGL2290W

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EGL2290W with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EGL2290W
Manufacturer	E-Switch
Description	SWITCH SLIDE DPDT 300MA 6V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 38617 pcs
Reference Price (In US Dollars)	1500 pcs
Reference Price (In US Dollars)	$0.909

Product parameter
Data sheet

Product parameter

Part Number	EGL2290W	Manufacturer	E-Switch
Description	SWITCH SLIDE DPDT 300MA 6V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38617 pcs	Data sheet	EGL2290W Drawing EGL Series Datasheet
Category	Switches	Voltage Rating - DC	6V
Termination Style	Gull Wing	Switch Travel	2.00mm
Switch Function	On-On	Series	EGL2290
Packaging	Tape & Reel (TR)	Other Names	EG5403TR
Operating Temperature	-40°C ~ 85°C	Operating Force	200gf
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2 (1 Year)
Mechanical Life	10,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	LED, White
Electrical Life	10,000 Cycles	Detailed Description	Slide Switch DPDT Surface Mount
Current Rating	300mA (DC)	Contact Timing	Not Specified
Contact Material	-	Contact Finish	-
Circuit	DPDT	Actuator Type	Illuminated
Actuator Material	-	Actuator Length	1.00mm
