Home > Products > Switches > Pushbutton Switches > D16OAS11BRED

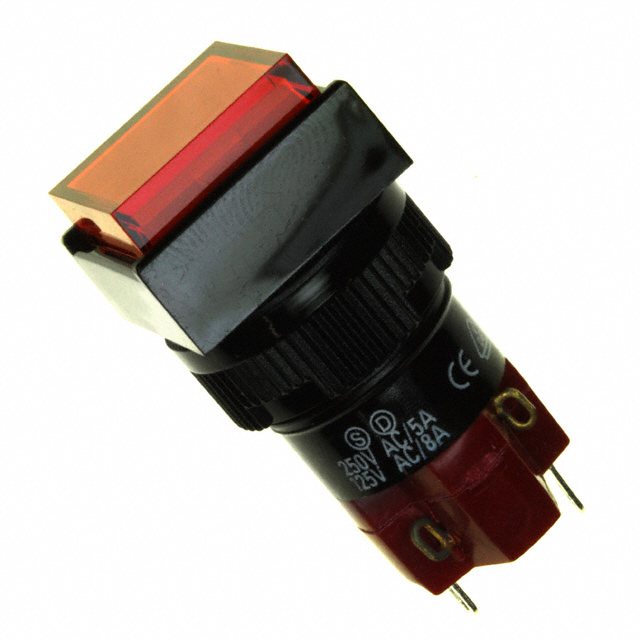

D16OAS11BRED

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D16OAS11BRED with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D16OAS11BRED
Manufacturer	E-Switch
Description	SWITCH PUSHBUTTON SPDT 8A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8788 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$4.459

Product parameter
Data sheet

Product parameter

Part Number	D16OAS11BRED	Manufacturer	E-Switch
Description	SWITCH PUSHBUTTON SPDT 8A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8788 pcs	Data sheet	D16, P16, L16 Series Datasheet
Category	Switches	Voltage Rating - DC	24V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	D16	Panel Cutout Dimensions	Circular - 16.00mm Dia
Packaging	Bulk	Other Names	Q3677247
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	14 VAC/DC
Illumination Type, Color	Incandescent, Red	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Current Rating	8A (AC), 6A (DC)	Color - Actuator/Cap	Red
Circuit	SPDT	Actuator Type	Square, Button
