Home > Products > Switches > Rocker Switches > 300DP3R1BLKM1QE

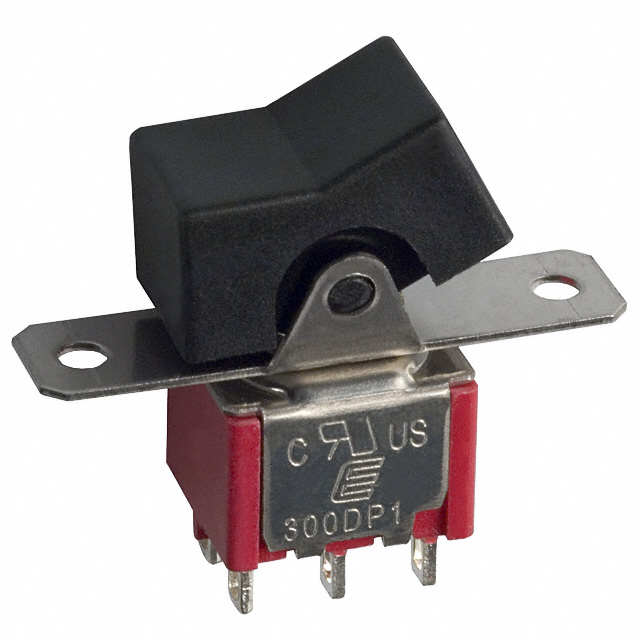

300DP3R1BLKM1QE

300DP3R1BLKM1QE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 300DP3R1BLKM1QE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	300DP3R1BLKM1QE
Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 30817 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$1.253

Product parameter
Data sheet

Product parameter

Part Number	300DP3R1BLKM1QE	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30817 pcs	Data sheet	300DP3R1BLKM1QE Drawing 300 Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	300
Panel Cutout Dimensions	Rectangular - 17.96mm x 10.62mm	Packaging	Bulk
Other Names	EG4309	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Flange	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	40,000 Cycles
Detailed Description	Rocker Switch DPDT 5A (AC/DC) 120V Panel Mount, Flange	Current Rating	5A (AC/DC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
