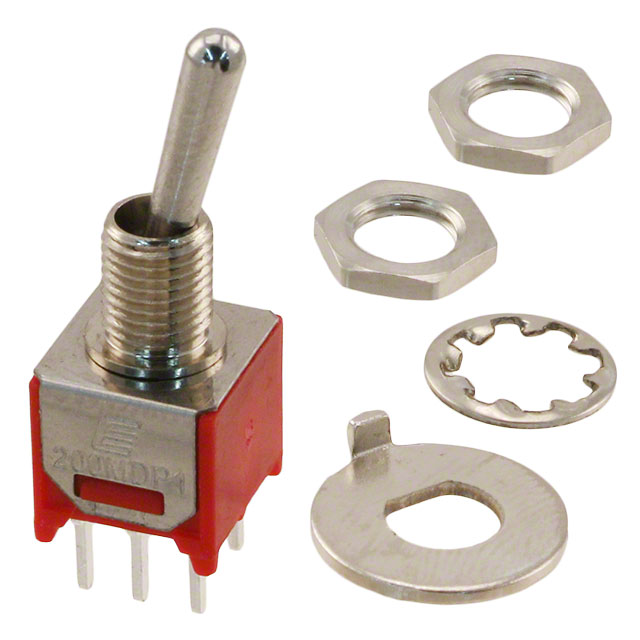

200MDP1T1B1M2QEH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 200MDP1T1B1M2QEH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 200MDP1T1B1M2QEH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 200MDP1T1B1M2QEH |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPDT 3A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.285 | $1.234 | $1.18 | $1.126 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.019 | $0.938 | $0.858 | $0.751 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 200MDP1T1B1M2QEH | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 3A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41541 pcs | Data sheet | 200 Series Datasheet200MDP1T1B1M2QEH Drawing |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Termination Style | PC Pin |
| Switch Function | On-On | Series | 200 |
| Panel Cutout Dimensions | Circular - 4.95mm Dia | Packaging | Bulk |
| Other Names | 200MDP1T1B1M2QE EG2456 T221022 |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 30,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 3A (AC/DC) |
| Circuit | DPDT | Bushing Thread | 10-48 |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 9.40mm |
