Home > Products > Switches > Toggle Switches > 100SP1T7B13M3REH

100SP1T7B13M3REH

100SP1T7B13M3REH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100SP1T7B13M3REH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	100SP1T7B13M3REH
Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 0.4VA 20V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 31579 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$1.109

Product parameter
Data sheet

Product parameter

Part Number	100SP1T7B13M3REH	Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31579 pcs	Data sheet	100SP1T7B13M3REH Drawing 100 Series Datasheet
Category	Switches	Voltage Rating - DC	20V
Voltage Rating - AC	20V	Termination Style	Quick Connect - 0.062" (1.5mm)
Switch Function	On-On	Series	100
Panel Cutout Dimensions	Circular - 11.91mm Dia	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch SPDT Panel Mount
Current Rating	0.4VA (AC/DC)	Circuit	SPDT
Bushing Thread	15/32-32	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	13.00mm

Related products
Related news

Related products

100SP1T7B13M3RE Image

Part#:~~100SP1T7B13M3RE~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH TOGGLE SPDT 0.4VA 20V~~
In Stock:~~50876~~

~~$0.7/pcs~~RFQ

Part#:~~100SP1T7B13VS2REH~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH TOGGLE SPDT 0.4VA 20V~~
In Stock:~~27673~~

~~$1.352/pcs~~RFQ

Part#:~~100SP1T8B13M2REH~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH TOGGLE SPDT 0.4VA 20V~~
In Stock:~~28528~~

~~$1.073/pcs~~RFQ

Part#:~~100SP1T8B13M1REH~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH TOGGLE SPDT 0.4VA 20V~~
In Stock:~~28067~~

~~$1.111/pcs~~RFQ

Part#:~~100SP1T6B15M2QEH~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH TOGGLE SPDT 5A 120V~~
In Stock:~~40022~~

~~$0.951/pcs~~RFQ

Part#:~~100SP1T7B13VS3REH~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH TOGGLE SPDT 0.4VA 20V~~
In Stock:~~24731~~

~~$1.49/pcs~~RFQ

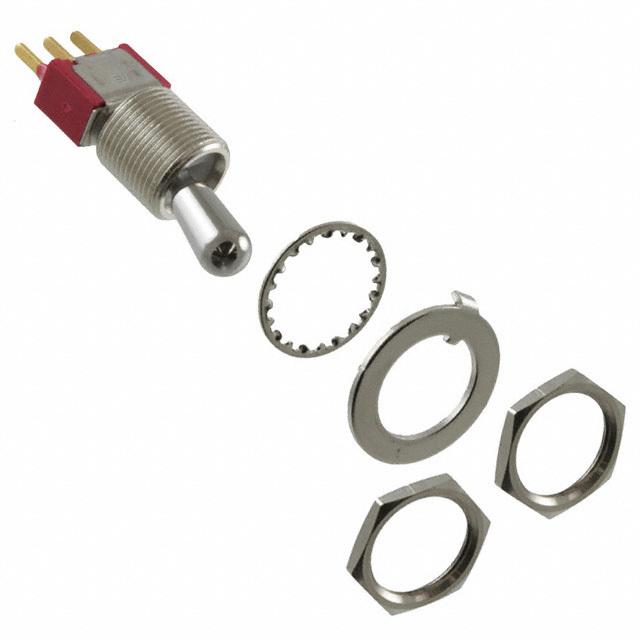

100SP1T7B13M2QEH Image
