Home > Products > Switches > Toggle Switches > 100SP1T4B1M1QEH

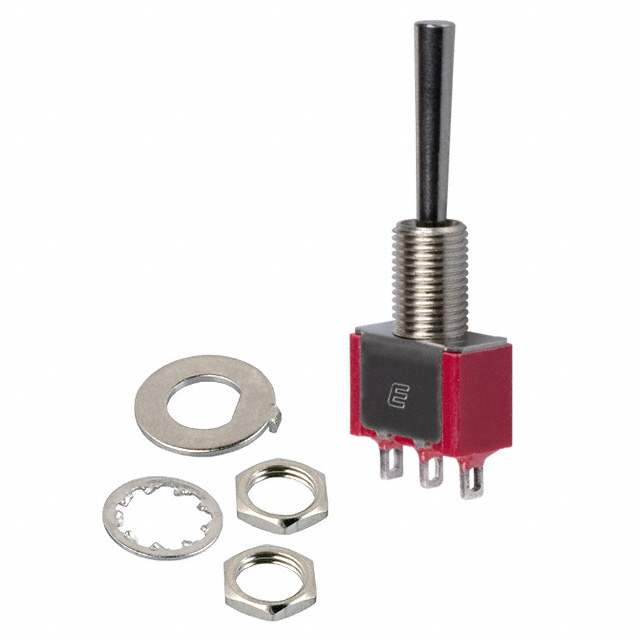

100SP1T4B1M1QEH

100SP1T4B1M1QEH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100SP1T4B1M1QEH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	100SP1T4B1M1QEH
Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 64727 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.938	$0.90	$0.861	$0.822	$0.743
	$0.685	$0.626	$0.548	$0.528

Product parameter
Data sheet

Product parameter

Part Number	100SP1T4B1M1QEH	Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64727 pcs	Data sheet	100 Series Datasheet 100SP1T4B1M1QEH Drawing
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-On	Series	100
Panel Cutout Dimensions	Circular - 6.35mm Dia	Packaging	Bulk
Other Names	100SP1T4B1M1QE EG2367 T111096	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	40,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	5A (AC/DC)
Circuit	SPDT	Bushing Thread	1/4-40
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	16.26mm
