1003P1T1B1M2QE

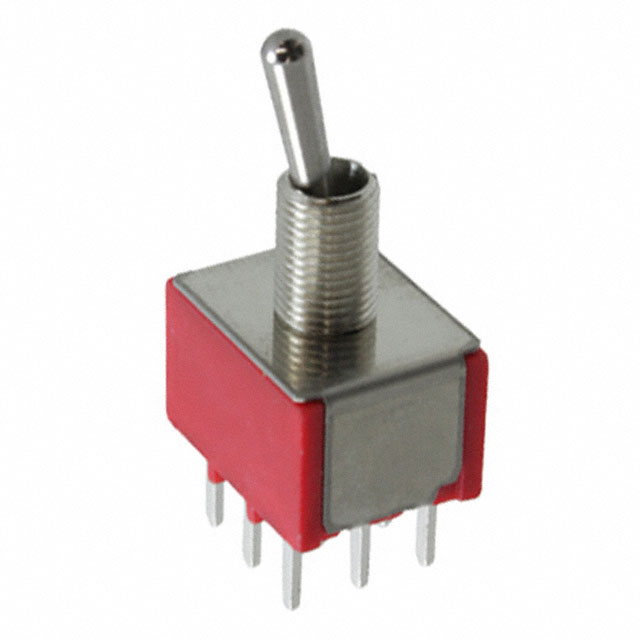

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1003P1T1B1M2QE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1003P1T1B1M2QE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1003P1T1B1M2QE |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE 3PDT 5A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $1.791 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1003P1T1B1M2QE | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE 3PDT 5A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18246 pcs | Data sheet | 1003P1T1B1M2QE Drawing100 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Termination Style | PC Pin |
| Switch Function | On-On | Series | 100 |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Packaging | Bulk |
| Operating Temperature | -30°C ~ 85°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 40,000 Cycles | Detailed Description | Toggle Switch 3PDT Panel Mount |
| Current Rating | 5A (AC/DC) | Circuit | 3PDT |
| Bushing Thread | 1/4-40 | Actuator Type | Standard Round |
| Actuator Material | Brass, Chrome Plated | Actuator Length | 10.41mm |
