ZXTC4591AMCTA

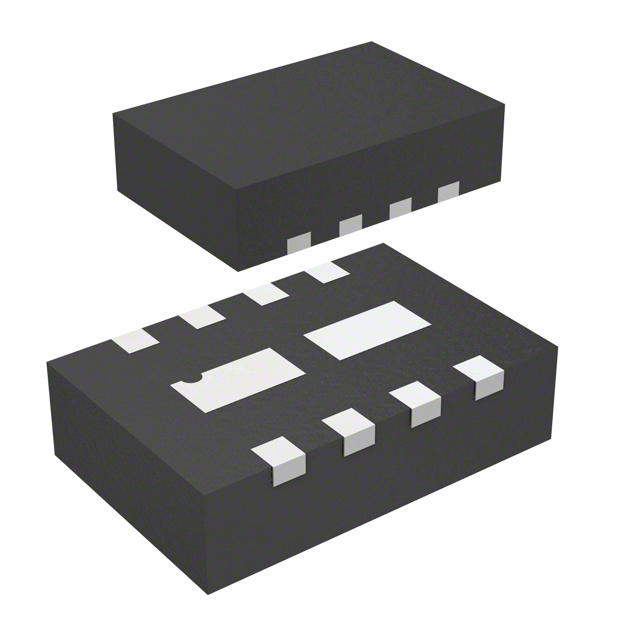

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZXTC4591AMCTA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZXTC4591AMCTA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ZXTC4591AMCTA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TRANS NPN/PNP 40V 2A/1.5A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.333 | $0.294 | $0.225 | $0.178 | $0.143 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ZXTC4591AMCTA | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | TRANS NPN/PNP 40V 2A/1.5A 8DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 151954 pcs | Data sheet | ZXTC4591AMC |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A | Transistor Type | NPN, PNP |
| Supplier Device Package | 8-DFN (3x2) | Series | - |
| Power - Max | 1.7W | Packaging | Original-Reel® |
| Package / Case | 8-WDFN Exposed Pad | Other Names | ZXTC4591AMCTADIDKR ZXTC4591AMCTADKR ZXTC4591AMCTADKR-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 150MHz | Detailed Description | Bipolar (BJT) Transistor Array NPN, PNP 40V 2A, 1.5A 150MHz 1.7W Surface Mount 8-DFN (3x2) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 500mA, 5V / 300 @ 100mA, 5V | Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 2A, 1.5A | Base Part Number | ZXTC4591AMC |
