Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Arrays > ZDT694TA

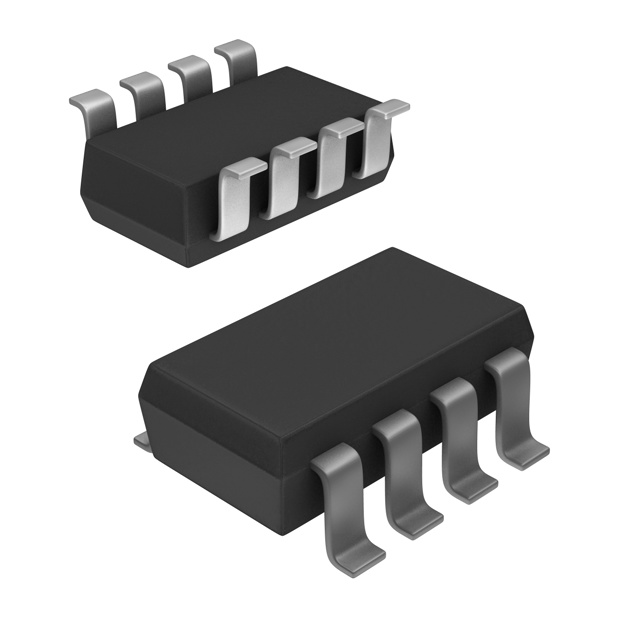

ZDT694TA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZDT694TA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZDT694TA
Manufacturer	Diodes Incorporated
Description	TRANS 2NPN 120V 0.5A SM8
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant

~~In Stock~~ 70005 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$0.469	$0.419	$0.326	$0.27

Product parameter
Data sheet

Product parameter

Part Number	ZDT694TA	Manufacturer	Diodes Incorporated
Description	TRANS 2NPN 120V 0.5A SM8	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	70005 pcs	Data sheet	ZDT694
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	120V
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 400mA	Transistor Type	2 NPN (Dual)
Supplier Device Package	SM8	Series	-
Power - Max	2.75W	Packaging	Original-Reel®
Package / Case	SOT-223-8	Other Names	ZDT694DKR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Frequency - Transition	130MHz	Detailed Description	Bipolar (BJT) Transistor Array 2 NPN (Dual) 120V 500mA 130MHz 2.75W Surface Mount SM8
DC Current Gain (hFE) (Min) @ Ic, Vce	400 @ 200mA, 2V	Current - Collector Cutoff (Max)	100nA (ICBO)
Current - Collector (Ic) (Max)	500mA	Base Part Number	ZDT694
