SHA000001

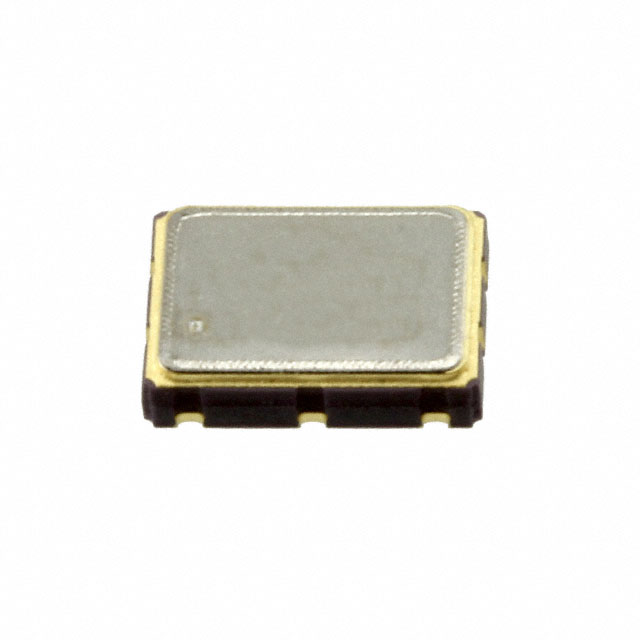

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SHA000001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SHA000001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SHA000001 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | OSCILLATOR XO 100MHZ HCSL SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.975 | $1.864 | $1.809 | $1.727 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SHA000001 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | OSCILLATOR XO 100MHZ HCSL SMD | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 21082 pcs | Data sheet | SHA000001 Specification |
| Category | Crystals, Oscillators, Resonators | Voltage - Supply | 3.3V |
| Type | XO (Standard) | Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Series | SaRonix-eCera™ SH | Ratings | - |
| Packaging | Original-Reel® | Package / Case | 6-SMD, No Lead |
| Output | HCSL | Other Names | SHA000001DKR |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | Height - Seated (Max) | 0.079" (2.00mm) |
| Function | Enable/Disable | Frequency Stability | ±50ppm |
| Frequency | 100MHz | Detailed Description | 100MHz XO (Standard) HCSL Oscillator 3.3V Enable/Disable 6-SMD, No Lead |
| Current - Supply (Max) | 40mA | Current - Supply (Disable) (Max) | 15mA |
| Base Resonator | Crystal |
