Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > SBR40U100CTE

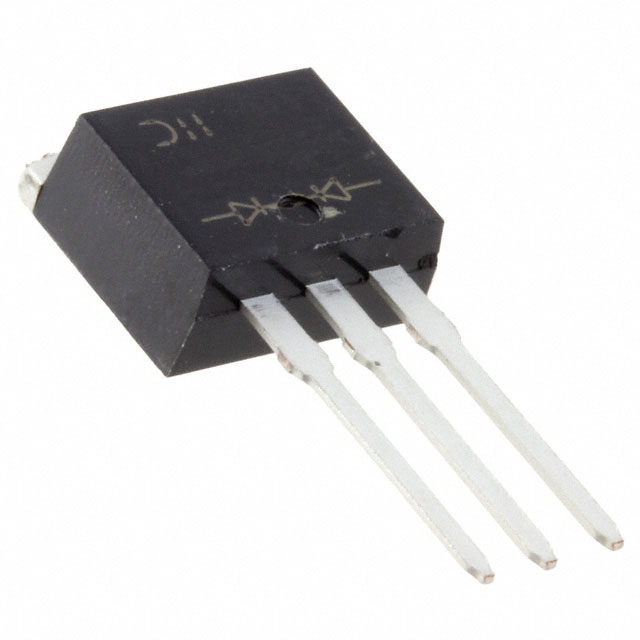

SBR40U100CTE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBR40U100CTE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SBR40U100CTE
Manufacturer	Diodes Incorporated
Description	DIODE ARRAY SBR 100V 20A TO262
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant

~~In Stock~~ 40599 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$0.972

Product parameter
Data sheet

Product parameter

Part Number	SBR40U100CTE	Manufacturer	Diodes Incorporated
Description	DIODE ARRAY SBR 100V 20A TO262	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	40599 pcs	Data sheet	SBR40U100CTE
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	780mV @ 20A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	TO-262
Speed	Fast Recovery = 200mA (Io)	Series	SBR®
Packaging	Tube	Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Other Names	SBR40U100CTEDI	Operating Temperature - Junction	-65°C ~ 150°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Diode Type	Super Barrier	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Super Barrier 100V 20A Through Hole TO-262-3 Long Leads, I²Pak, TO-262AA	Current - Reverse Leakage @ Vr	500µA @ 100V
Current - Average Rectified (Io) (per Diode)	20A	Base Part Number	SBR40U100CT
