Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > SBR3U20SA-13

SBR3U20SA-13

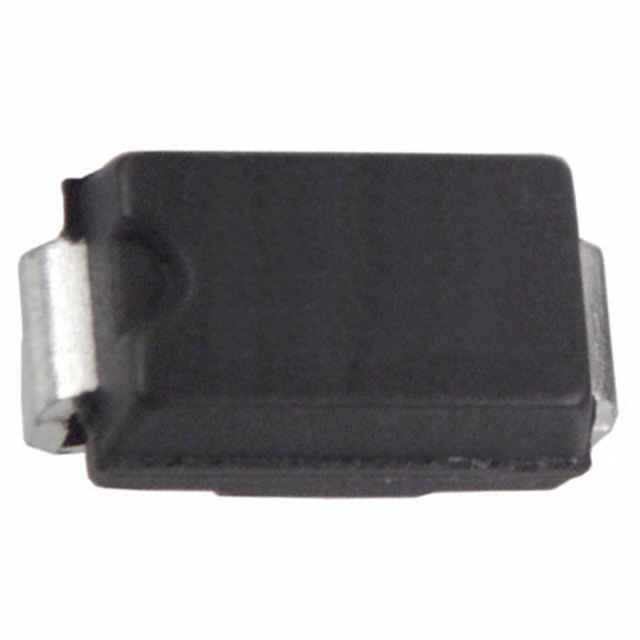

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBR3U20SA-13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SBR3U20SA-13
Manufacturer	Diodes Incorporated
Description	DIODE SBR 20V 3A SMA
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant

~~In Stock~~ 234222 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.257	$0.219	$0.164	$0.128	$0.099

Product parameter
Data sheet

Product parameter

Part Number	SBR3U20SA-13	Manufacturer	Diodes Incorporated
Description	DIODE SBR 20V 3A SMA	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	234222 pcs	Data sheet	SBR3U20SA
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	390mV @ 3A
Voltage - DC Reverse (Vr) (Max)	20V	Supplier Device Package	SMA
Speed	Fast Recovery = 200mA (Io)	Series	SBR®
Packaging	Cut Tape (CT)	Package / Case	DO-214AC, SMA
Other Names	SBR3U20SA-13DICT	Operating Temperature - Junction	-65°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Diode Type	Super Barrier	Detailed Description	Diode Super Barrier 20V 3A Surface Mount SMA
Current - Reverse Leakage @ Vr	500µA @ 20V	Current - Average Rectified (Io)	3A
Capacitance @ Vr, F	-
