PI5A3158BZAEX

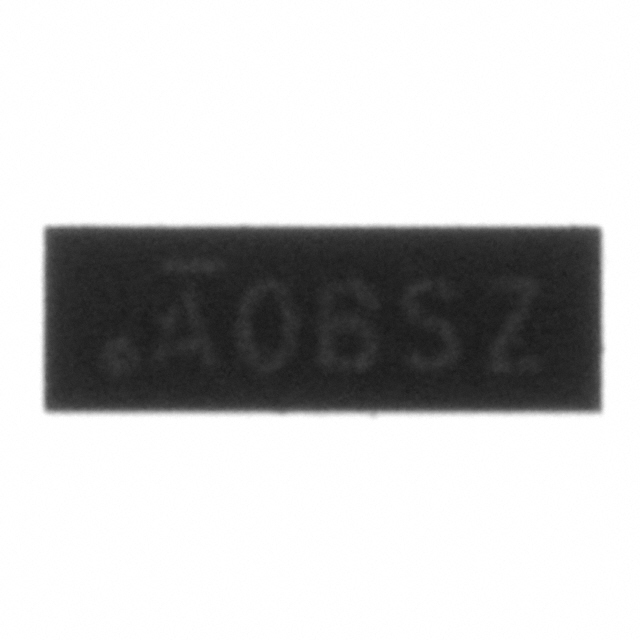

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI5A3158BZAEX with confidence from Components-World.HK, 1 Year Warranty
Dowload PI5A3158BZAEX Details in PDFSee Product Specifications for product details.
Buy PI5A3158BZAEX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PI5A3158BZAEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC SWITCH DUAL SPDT 12TDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3500 pcs | 7000 pcs | 10500 pcs | 24500 pcs | |
|---|---|---|---|---|---|
| $0.056 | $0.052 | $0.048 | $0.046 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PI5A3158BZAEX | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 12TDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 519035 pcs | Data sheet | PI5A3158B |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.65 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | - |
| Switch Circuit | SPDT | Supplier Device Package | 12-TDFN (3x1) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN | Other Names | PI5A3158BZAEX-ND PI5A3158BZAEXDITR |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 11 Ohm |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 2 Circuit IC Switch 2:1 11 Ohm 12-TDFN (3x1) |
| Current - Leakage (IS(off)) (Max) | 100nA | Crosstalk | - |
| Charge Injection | 5pC | Channel-to-Channel Matching (ΔRon) | 150 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF | -3db Bandwidth | 350MHz |
