Home > Products > Integrated Circuits (ICs) > Logic - Translators, Level Shifters > PI4ULS3V304ZMEX

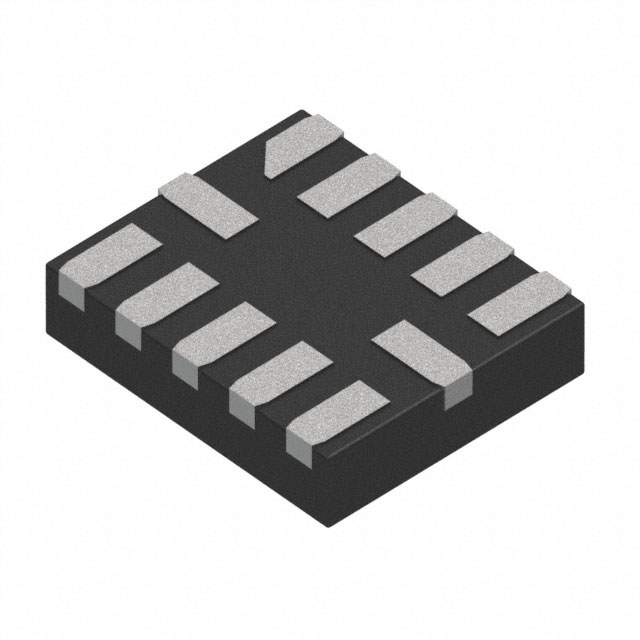

PI4ULS3V304ZMEX

PI4ULS3V304ZMEX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI4ULS3V304ZMEX with confidence from Components-World.HK, 1 Year Warranty

Dowload PI4ULS3V304ZMEX Details in PDF

Request a Quote

Part Number	PI4ULS3V304ZMEX
Manufacturer	Diodes Incorporated
Description	IC TRNSLTR BIDIRECTIONAL 12QFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 108304 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs
Reference Price (In US Dollars)	$0.202	$0.192	$0.185

Product parameter
Data sheet

Product parameter

Part Number	PI4ULS3V304ZMEX	Manufacturer	Diodes Incorporated
Description	IC TRNSLTR BIDIRECTIONAL 12QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	108304 pcs	Data sheet	PI4ULS3V304
Category	Integrated Circuits (ICs)	Voltage - VCCB	1.35V ~ 3.6V
Voltage - VCCA	0.85V ~ 2.7V	Translator Type	Voltage Level
Supplier Device Package	12-UQFN (1.7x2)	Series	ULS
Packaging	Tape & Reel (TR)	Package / Case	12-UFQFN
Output Type	Non-Inverted	Output Signal	-
Other Names	PI4ULS3V304ZMEXTR	Operating Temperature	-40°C ~ 85°C (TA)
Number of Circuits	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Signal	-
Features	Auto-Direction Sensing, Power-Off Protection	Detailed Description	Voltage Level Translator Bidirectional 1 Circuit 4 Channel 140Mbps 12-UQFN (1.7x2)
Data Rate	140Mbps	Channels per Circuit	4
Channel Type	Bidirectional
