Home > Products > Integrated Circuits (ICs) > Interface - Analog Switches - Special Purpose > PI3USB221AZUAEX

PI3USB221AZUAEX

PI3USB221AZUAEX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3USB221AZUAEX with confidence from Components-World.HK, 1 Year Warranty

Dowload PI3USB221AZUAEX Details in PDF

Request a Quote

Part Number	PI3USB221AZUAEX
Manufacturer	Diodes Incorporated
Description	IC USB2 SWITCH 3V UQFN2015-10
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 259102 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs
Reference Price (In US Dollars)	$0.095	$0.089	$0.086	$0.082

Product parameter
Data sheet

Product parameter

Part Number	PI3USB221AZUAEX	Manufacturer	Diodes Incorporated
Description	IC USB2 SWITCH 3V UQFN2015-10	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	259102 pcs	Data sheet	PI3USB221A Preliminary~
Category	Integrated Circuits (ICs)	Voltage - Supply, Single (V+)	2.3 V ~ 3.6 V
Voltage - Supply, Dual (V±)	-	Switch Circuit	SPDT
Supplier Device Package	10-UQFN (2.0x1.5)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	10-UFQFN
Other Names	PI3USB221AZUAEX-ND PI3USB221AZUAEXDITR	Operating Temperature	-40°C ~ 85°C
On-State Resistance (Max)	6 Ohm	Number of Channels	1
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Bi-Directional, USB 2.0
Detailed Description	USB Switch IC 1 Channel 10-UQFN (2.0x1.5)	Base Part Number	PI3USB221
Applications	USB	-3db Bandwidth	1.1GHz

Related products
Related news

Related products

PI3USB304ZHE Image

Part#:~~PI3USB304ZHE~~
Manufacturers:~~Diodes Incorporated~~
Description:~~IC USB 3.0 MUX/DEMUX SW 42TQFN~~
In Stock:~~45923~~

~~$0.699/pcs~~RFQ

PI3USB14ZHE Image

Part#:~~PI3USB14ZHE~~
Manufacturers:~~Diodes Incorporated~~
Description:~~IC USB SWITCH DUAL 4X1 20TQFN~~
In Stock:~~4955~~

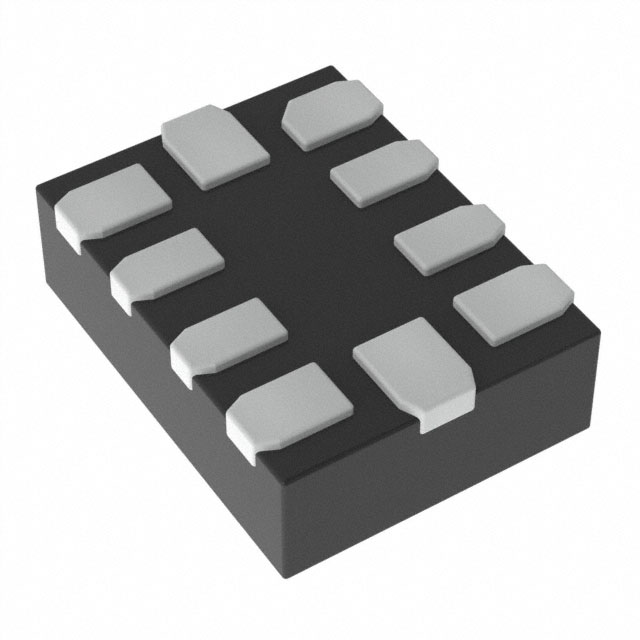

PI3USB221EZUAEX Image
