Home > Products > Integrated Circuits (ICs) > Interface - Signal Buffers, Repeaters, Splitters > PI2EQX8864AZLEX

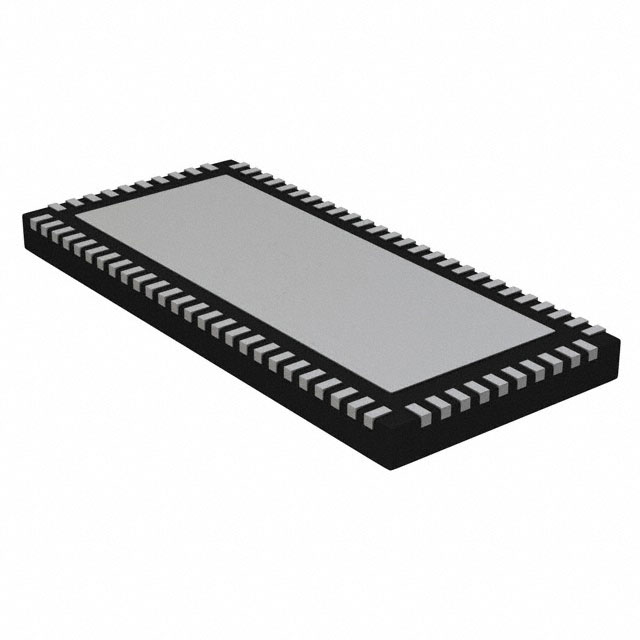

PI2EQX8864AZLEX

PI2EQX8864AZLEX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI2EQX8864AZLEX with confidence from Components-World.HK, 1 Year Warranty

Dowload PI2EQX8864AZLEX Details in PDF

Request a Quote

Part Number	PI2EQX8864AZLEX
Manufacturer	Diodes Incorporated
Description	IC REDRIVER PCIE 4CH 72TQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4620 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PI2EQX8864AZLEX	Manufacturer	Diodes Incorporated
Description	IC REDRIVER PCIE 4CH 72TQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4620 pcs	Data sheet	PI2EQX8864A Databrief
Category	Integrated Circuits (ICs)	Voltage - Supply	1.5V
Type	Buffer, ReDriver	Supplier Device Package	72-TQFN (11x5)
Signal Conditioning	-	Series	PCI Express®(PCIe), ReDriver™
Packaging	Tape & Reel (TR)	Package / Case	72-WFQFN Exposed Pad
Output	-	Operating Temperature	-
Number of Channels	4	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input	-
Detailed Description	Buffer, ReDriver 4 Channel 8Gbps 72-TQFN (11x5)	Delay Time	-
Data Rate (Max)	8Gbps	Current - Supply	-
Base Part Number	PI2EQX8864	Applications	PCIe
