Home > Products > Integrated Circuits (ICs) > Interface - Analog Switches - Special Purpose > PI2DBS212QEX

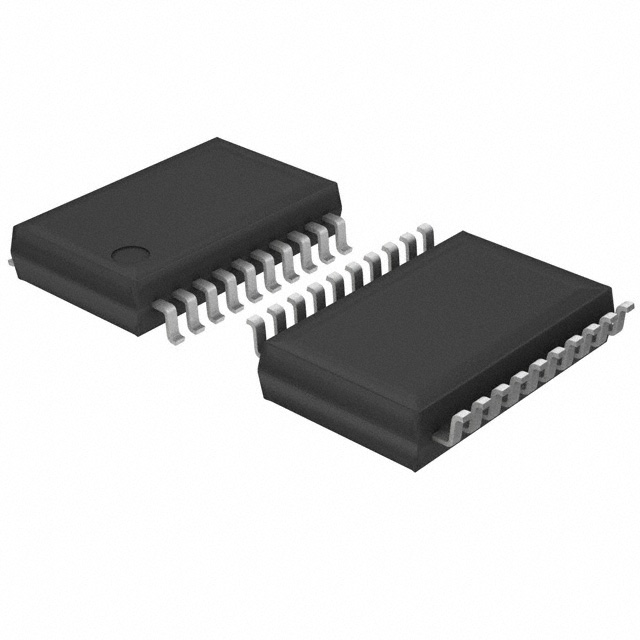

PI2DBS212QEX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI2DBS212QEX with confidence from Components-World.HK, 1 Year Warranty

Dowload PI2DBS212QEX Details in PDF

Request a Quote

Part Number	PI2DBS212QEX
Manufacturer	Diodes Incorporated
Description	IC MUX/DEMUX 2X1 1.8V 20QSOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4948 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PI2DBS212QEX	Manufacturer	Diodes Incorporated
Description	IC MUX/DEMUX 2X1 1.8V 20QSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4948 pcs	Data sheet	PI2DBS212
Category	Integrated Circuits (ICs)	Voltage - Supply, Single (V+)	1.2 V ~ 1.8 V
Voltage - Supply, Dual (V±)	-	Switch Circuit	-
Supplier Device Package	20-QSOP	Series	-
Packaging	Tape & Reel (TR)	Package / Case	20-SSOP (0.154", 3.90mm Width)
Operating Temperature	-40°C ~ 85°C (TA)	On-State Resistance (Max)	10 Ohm
Number of Channels	2	Multiplexer/Demultiplexer Circuit	2:1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	SATA	Detailed Description	Telecommunications Switch IC 2 Channel 20-QSOP
Base Part Number	PI2DBS212	Applications	Telecommunications
-3db Bandwidth	2GHz
