Home > Products > Integrated Circuits (ICs) > Linear - Amplifiers - Audio > PAM8404ZER

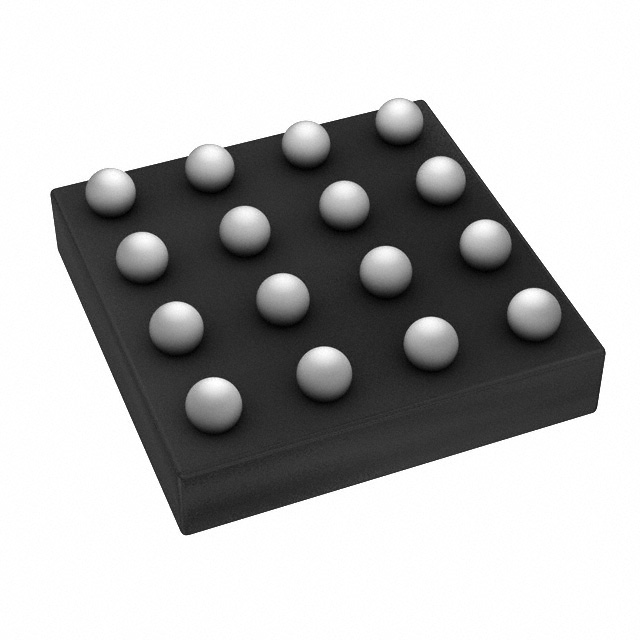

PAM8404ZER

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAM8404ZER with confidence from Components-World.HK, 1 Year Warranty

Dowload PAM8404ZER Details in PDF

Request a Quote

Part Number	PAM8404ZER
Manufacturer	Diodes Incorporated
Description	IC AMP AUDIO 3W CLASS D 16WCSP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 170204 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.129

Product parameter
Data sheet

Product parameter

Part Number	PAM8404ZER	Manufacturer	Diodes Incorporated
Description	IC AMP AUDIO 3W CLASS D 16WCSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	170204 pcs	Data sheet	PAM8404 Series
Category	Integrated Circuits (ICs)	Voltage - Supply	2.5 V ~ 5.5 V
Type	Class D	Supplier Device Package	16-WCSP (1.95x1.95)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	16-WFBGA, WLCSP	Output Type	2-Channel (Stereo)
Other Names	PAM8404ZERDI	Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Output Power x Channels @ Load	3W x 2 @ 4 Ohm	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Depop, Short-Circuit and Thermal Protection
Detailed Description	Amplifier IC 2-Channel (Stereo) Class D 16-WCSP (1.95x1.95)	Base Part Number	PAM8404
