PAM8001XHR

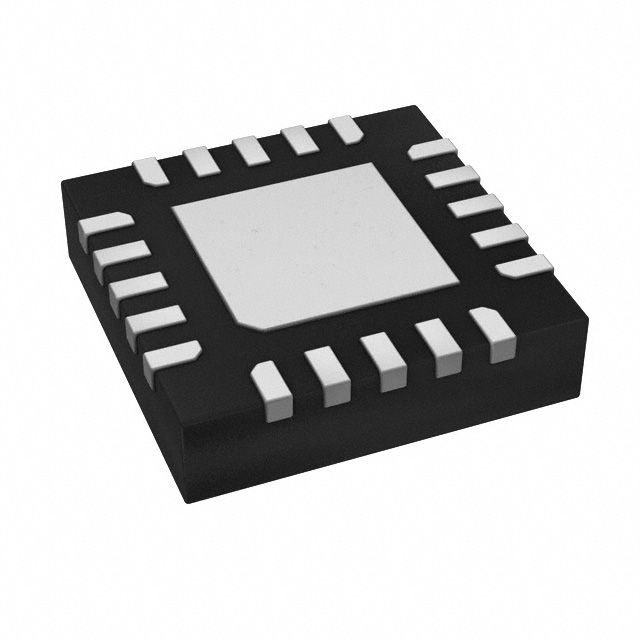

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAM8001XHR with confidence from Components-World.HK, 1 Year Warranty
Dowload PAM8001XHR Details in PDFSee Product Specifications for product details.
Buy PAM8001XHR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PAM8001XHR |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC AMP AUDIO 2W CLASS D 20UQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PAM8001XHR | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC AMP AUDIO 2W CLASS D 20UQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4276 pcs | Data sheet | PAM8001 Series |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 2.5 V ~ 5.5 V |
| Type | Class D | Supplier Device Package | 20-QFN (3x3) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad | Output Type | 2-Channel (Stereo) |
| Other Names | PAM8001XHRDI | Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Output Power x Channels @ Load | 2.8W x 2 @ 4 Ohm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Depop, Short-Circuit and Thermal Protection | Detailed Description | Amplifier IC 2-Channel (Stereo) Class D 20-QFN (3x3) |
| Base Part Number | PAM8001 |
