Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > PAM2803EV1

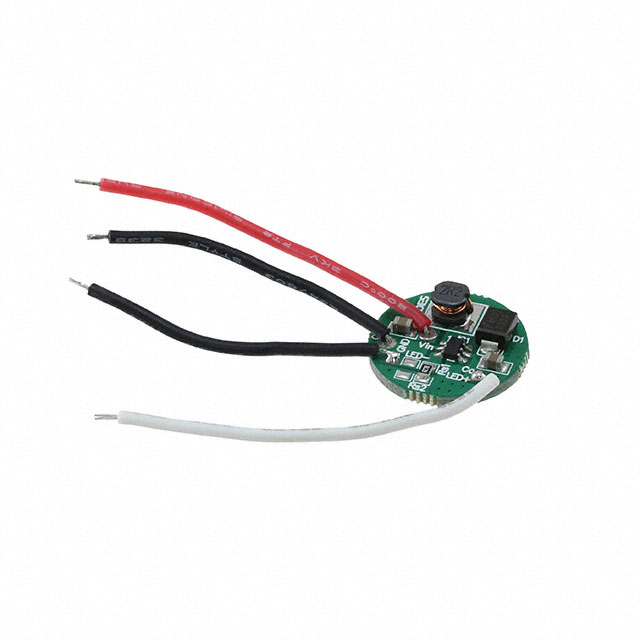

PAM2803EV1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAM2803EV1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PAM2803EV1
Manufacturer	Diodes Incorporated
Description	EVAL BOARD FOR PAM2803
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1759 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$17.74

Product parameter

Product parameter

Part Number	PAM2803EV1	Manufacturer	Diodes Incorporated
Description	EVAL BOARD FOR PAM2803	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1759 pcs	Data sheet
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	-	Utilized IC / Part	PAM2803
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	PAM2803EV1DI
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	PAM2803 1, Non-Isolated Output LED Driver Evaluation Board	Current - Output / Channel	1A
