PAM2306AYPKB

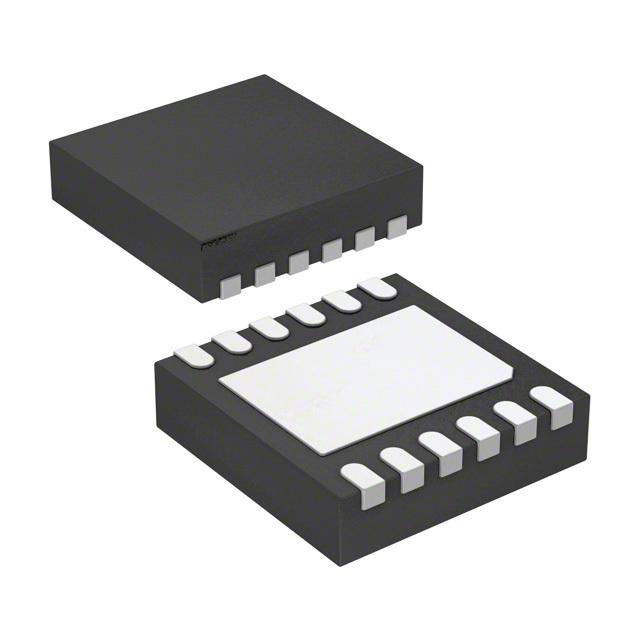

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAM2306AYPKB with confidence from Components-World.HK, 1 Year Warranty
Dowload PAM2306AYPKB Details in PDFSee Product Specifications for product details.
Buy PAM2306AYPKB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PAM2306AYPKB |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG BCK 1.2V/3.3V 1A DL 12DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.128 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PAM2306AYPKB | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC REG BCK 1.2V/3.3V 1A DL 12DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 185794 pcs | Data sheet | PAM2306 Series |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | 1.2V, 3.3V |
| Voltage - Output (Max) | - | Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V | Topology | Buck |
| Synchronous Rectifier | Yes | Supplier Device Package | 12-WDFN (3x3) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad | Output Type | Fixed |
| Output Configuration | Positive | Other Names | PAM2306AYPKBDI |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Outputs | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down | Frequency - Switching | 1.5MHz |
| Detailed Description | Buck Switching Regulator IC Positive Fixed 1.2V, 3.3V 2 Output 1A 12-WFDFN Exposed Pad | Current - Output | 1A |
| Base Part Number | PAM2306 |
