Home > Products > Circuit Protection > TVS - Diodes > P4SMAJ70ADF-13

P4SMAJ70ADF-13

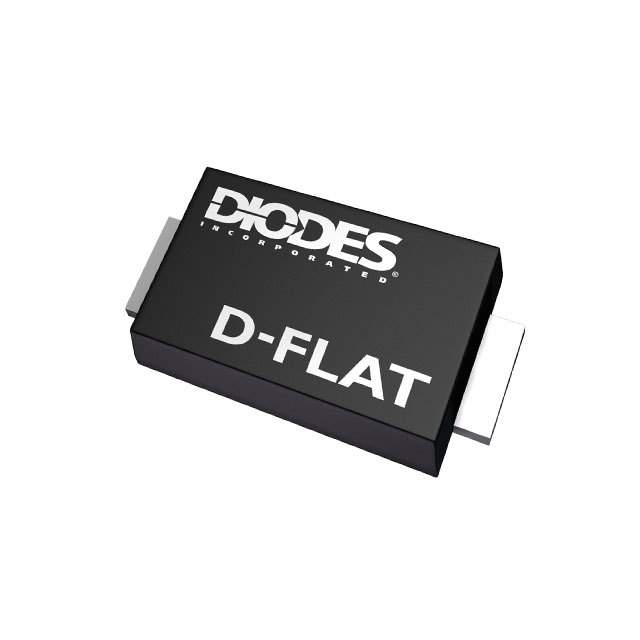

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P4SMAJ70ADF-13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	P4SMAJ70ADF-13
Manufacturer	Diodes Incorporated
Description	TVS DIODE 70V 113V DFLAT
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant

~~In Stock~~ 459318 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.146	$0.119	$0.081	$0.061	$0.046

Product parameter
Data sheet

Product parameter

Part Number	P4SMAJ70ADF-13	Manufacturer	Diodes Incorporated
Description	TVS DIODE 70V 113V DFLAT	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	459318 pcs	Data sheet	P4SMAJ5.0ADF - P4SMAJ85ADF
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	70V
Voltage - Clamping (Max) @ Ipp	113V	Voltage - Breakdown (Min)	77.8V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	D-Flat	Series	-
Power Line Protection	No	Power - Peak Pulse	400W
Packaging	Cut Tape (CT)	Package / Case	2-SMD, Flat Lead
Other Names	P4SMAJ70ADF-13DICT	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	27 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Current - Peak Pulse (10/1000µs)	3.5A	Capacitance @ Frequency	-
Applications	General Purpose
