MMBT3904LP-7

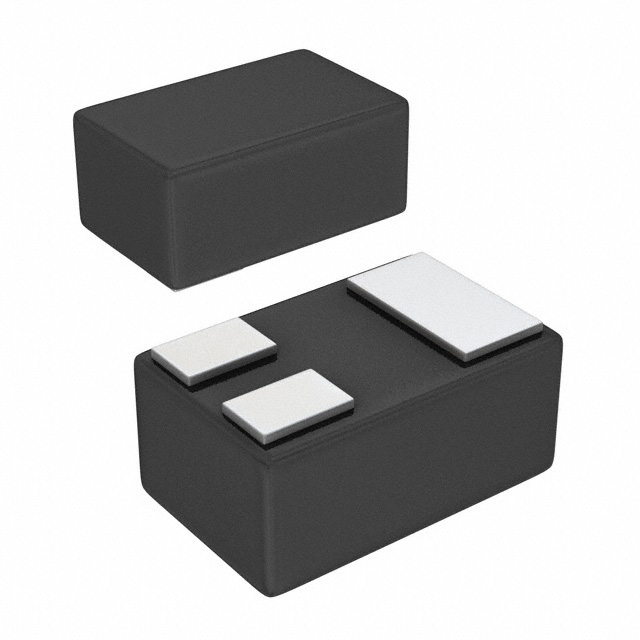

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMBT3904LP-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMBT3904LP-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMBT3904LP-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TRANS NPN 40V 0.2A DFN1006-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.032 | $0.03 | $0.027 | $0.026 | $0.023 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MMBT3904LP-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | TRANS NPN 40V 0.2A DFN1006-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 987159 pcs | Data sheet | MMBT3904LP Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA | Transistor Type | NPN |
| Supplier Device Package | 3-DFN1006 (1.0x0.6) | Series | Automotive, AEC-Q101 |
| Power - Max | 250mW | Packaging | Tape & Reel (TR) |
| Package / Case | 3-UFDFN | Other Names | MMBT3904LP-7DI MMBT3904LP-7DI-ND MMBT3904LP-7DITR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 300MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 40V 200mA 300MHz 250mW Surface Mount 3-DFN1006 (1.0x0.6) | DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Current - Collector Cutoff (Max) | - | Current - Collector (Ic) (Max) | 200mA |
| Base Part Number | MMBT3904 |
