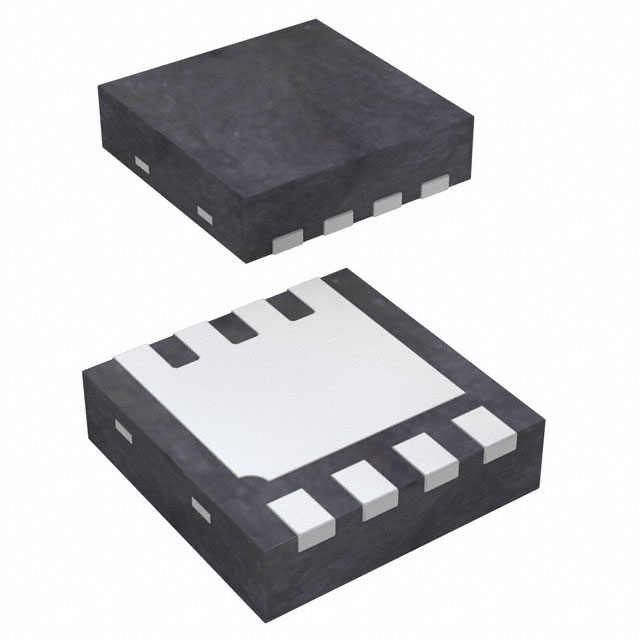

DMT3006LDK-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMT3006LDK-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMT3006LDK-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMT3006LDK-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N-CH 30V 17.1A VDFN30308 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.199 | $0.168 | $0.126 | $0.092 | $0.071 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DMT3006LDK-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET N-CH 30V 17.1A VDFN30308 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 302752 pcs | Data sheet | DMT3006LDK |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | V-DFN3030-8 | Series | - |
| Rds On (Max) @ Id, Vgs | 6.5 mOhm @ 12A, 10V | Power Dissipation (Max) | 1.1W (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerWDFN |
| Other Names | DMT3006LDK-7DICT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1320pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 22.6nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 17.1A (Ta), 46.2A (Tc) 1.1W (Ta) Surface Mount V-DFN3030-8 | Current - Continuous Drain (Id) @ 25°C | 17.1A (Ta), 46.2A (Tc) |
