DMP6023LFGQ-13

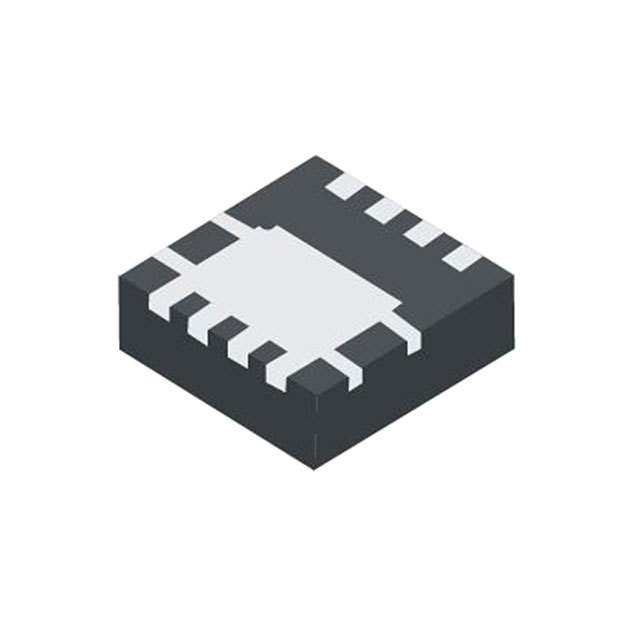

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMP6023LFGQ-13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMP6023LFGQ-13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMP6023LFGQ-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET PCH 60V 7.7A POWERDI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.111 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DMP6023LFGQ-13 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET PCH 60V 7.7A POWERDI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 212216 pcs | Data sheet | DMP6023LFGQ |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerDI3333-8 | Series | Automotive, AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 25 mOhm @ 5A, 10V | Power Dissipation (Max) | 1W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Operating Temperature | -55°C ~ 155°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2569pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 53.1nC @ 10V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | P-Channel 60V 7.7A (Ta) 1W (Ta) Surface Mount PowerDI3333-8 |
| Current - Continuous Drain (Id) @ 25°C | 7.7A (Ta) |
